Home Pool Replacement Pump Motors Square Flange Motors AO Smith VGreen Square Flange Variable Speed Motor | .5 to 1.65HP 208-230V | ECM16SQU
NOTICE: The Texas weather emergency in February has caused nationwide stock-outs on most products that will last months in many cases. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives, given that these back-orders are industry wide. There are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat is the quickest response. Please keep trying back via chat, email and phones as we can't answer them as fast as they come in but we are here, so keep trying!

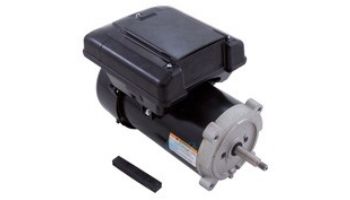

AO Smith VGreen Square Flange Variable Speed Motor | .5 to 1.65HP 208-230V | ECM16SQU

AO Smith VGreen Square Flange Variable Speed Motor | .5 to 1.65HP 208-230V | ECM16SQU
$378.07

Quantity:
Shipping Flat Rate Shipping $29.95

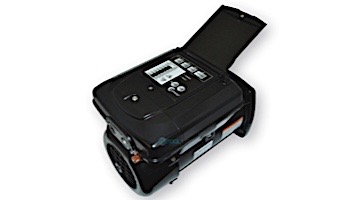

  • Integrated User Interface
  • Timer Mode/Manual Mode
  • Freeze Protection
  • Factor Reset
  • Noise Reduction Design
  • Square Flange
Purchase Options
OVERVIEW
The VGreen 165 variable speed motor joins a growing Century lineup of premium efficiency ECM replacement pump motors. Fully featured, the VGreen 165 incorporates durable TEFC construction with ECM Technology to deliver premium energy savings from 40 percent to 80 percent versus a standard single speed motor. Now energy conscious pool owners have an affordable replacement pump motor option that delivers the performance they demand with the programming flexibility they desire.

The VGreen 165 offers three variable speeds programmable from 600 to 3450 RPM, allowing users to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool nownership all while maintaining the proper pool environment. Pool size, the presence of additional water features, chemical maintenance needs, and environmental factors will impact the equation with every pool having unique requirements. The programming flexibility offered by the VGreen 165 makes it possible for pool owners to easily identify and adjust speed and duration settings necessary to maintain their pools and to maximize energy savings.

THP RPM Volts Max Amps** Service Factor Flange Percent Energy Savings* VGreen 165 Stock Number
1/2-1.65 600-3450 208-230 10.5-10.0 1.0 Square 80% ECM16SQU
1/2-1.65 600-3450 208-230 10.5-10.0 1.0 C-Face 80% ECM16CU

Features
  • Integrated User Interface
  • Timer Mode
  • Manual Mode
  • Freeze Protection
  • Noise Reduction Design
  • Factory Default Settings Reset
  • Ball Bearing
  • TEFC
  • Rotation: CCWPE
  • Single Phase
  • Schedule Advance
  • Full Variable Speed (600-3450 RPM)
  • Max Output of 1.65 THP
  • ECM Design
  • Program Memory Back-Up
  • 303 Stainless Steel Shaft
  • Class F Insulation
  • 50° C Ambient
  • UV and Rain-Proof Enclosure
  • Keypad Lockout
  • Digital Inputs for Third Party Automation
  • VGreen 270 User Interface* Compatibility (*sold separately)


Brand: A.O. Smith
SPECIFICATIONS
Speed
Variable Speed
Voltage
230 V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 1 answer
will this motor fit the Pentair Superflow pump?
Robert on Mar 14, 2021
Does the user interface included allow me to automatically start the pump at a certain time and speed and switch off at a certain time? is the freeze protection - pump switches on at a low speed below a certain temperature - included in the standard interface?
ARGO1962 on Apr 15, 2020
BEST ANSWER: Yes to all of those questions. The Owners Manual should get you all the info you need:
https://www.poolsupplyunlimited.com/Products/Manuals/157417_20173229368.pdf.
Is this the variable speed replacement for the Whisper flo motor WFE-6/011514?
Larry B on Mar 31, 2021
Will this work to replace a square flanged Hayward superpump, 1 HP?
Tim S on May 7, 2019
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Working great so far
Easy to set up. Came with adhesive rubber strip to match the external diameter of my existing pump base. Connected to existing timer wiring no problem. Runs quietly. Currently using the factory schedule. Will play with that more once I have a chance. I should have gotten this a long time ago but my old single speed pump refused to die until this year right before 4th of July weekend.
July 31, 2020
Purchased
9 months ago
