Home Pool Pool Pump Motor Replacements Threaded Shaft 56 Round Frame Motors Regal Beloit AO Smith Threaded Shaft Motor 2HP 230V 56 Round Frame Full-Rate Energy Efficient | ST1202

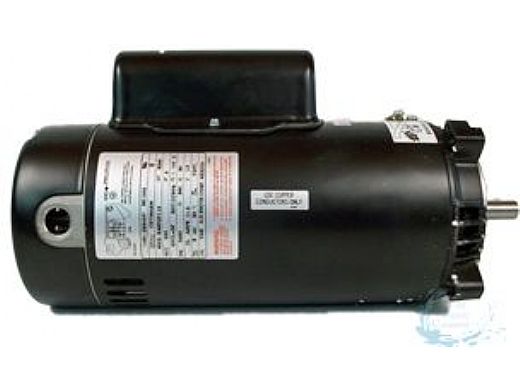

Regal Beloit AO Smith Threaded Shaft Motor 2HP 230V 56 Round Frame Full-Rate Energy Efficient | ST1202

Name: Regal Beloit AO Smith Threaded Shaft Motor 2HP 230V 56 Round Frame Full-Rate Energy Efficient | ST1202
Brand: A.O. Smith
SKU: 5301
Availability: InStock

$417.38

A.O. Smith is the industry standard for swimming pool OEM and replacement pump motors. They carry a standard 2 year warranty and are relatively easy to replace. The biggest challenge is often times finding the correct replacement for your existing motor. Years of sun, dirt, water stains and general neglect can make reading your motor label difficult.

The most important thing to match when replacing pool motors is the Service Factor Horsepower, or SFHP. SFHP is the product of HP rating and Service Factor.

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.

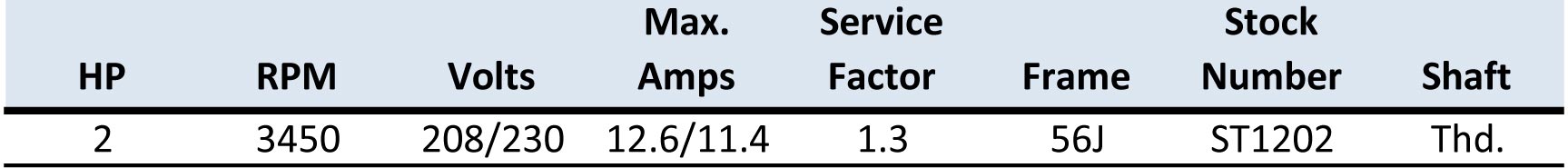

The A.O. Smith ST1202 Motor has the following specifications:

This motor is a common replacement for the following pumps:

Hayward Super Pump SP1600X, SP2600 and SP2600X Series (Max Rated)
Jandy HHP
Jandy JHP (discontinued)
Jandy PHP

See purchase options at right for common gasket kits that go with your Hayward Super Pump

A. O. Smith serves the pool and spa industry with a comprehensive line of switch and "switchless" electric motors that are designed to stand up to the weather, dirt, and pool chemicals. A. O. Smith's Conservationist motor combines our two-compartment design and a proven switch that provides years of reliable service. The Centurion line of two-pole 56 frame switchless pool motors bring dependability and economy to pool, spa, and jetted tub pumping applications. Our switchless design eliminated the majority of moving parts found in these motors, enhancing reliability. Neptune leisure water motors offer a unique 48 frame two compartment design with a tamper-proof switch and governor. Commander pool and spa motors meet European IEC standards. These quality motors are designed to the same specifications as the motors found in your equipment.

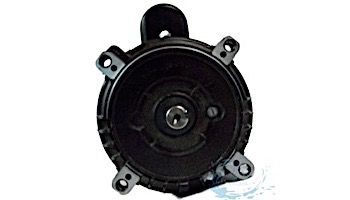

* NEMA 56C Face Mount
* Not Reversible
* Rotation (CCW)
* Sealed Ball Bearings
* Sealed Switch Design
* 60 HZ

Brand: A.O. Smith

REVIEWS

Q&A

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Regal Beloit AO Smith Threaded Shaft Motor 2HP 230V 56 Round Frame Full-Rate Energy Efficient | ST1202

$417.38

Quantity

Purchase options

Product description

The most important thing to match when replacing pool motors is the Service Factor Horsepower, or SFHP. SFHP is the product of HP rating and Service Factor.

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.

The A.O. Smith ST1202 Motor has the following specifications:

This motor is a common replacement for the following pumps:

Hayward Super Pump SP1600X, SP2600 and SP2600X Series (Max Rated)
Jandy HHP
Jandy JHP (discontinued)
Jandy PHP

See purchase options at right for common gasket kits that go with your Hayward Super Pump

* NEMA 56C Face Mount
* Not Reversible
* Rotation (CCW)
* Sealed Ball Bearings
* Sealed Switch Design
* 60 HZ
