Product description

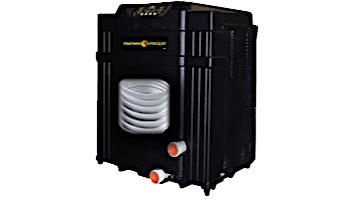

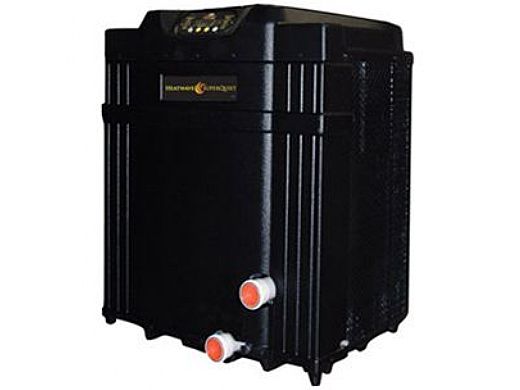

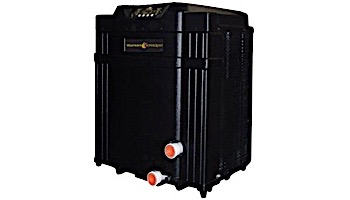

The HeatWave SuperQuiet SQ120 comes equipped with all standard features. Patented Titanium Heat Exchanger at its core makes this unit a power-house that's built to last. Designed for residential and light-duty commercial pools. Works great for smaller pools where over sizing is desired.

All AquaCal units feature Therm-O-Link Titanium Heat Exchangers and compressors. Our patented technology allows us to build the most durable and most cost efficient heat pump... ever! AquaCal Heat Pumps are available in a variety of sizes with an assortment of features so you can select the model that best suits your specific needs and budget. AquaCal has been producing quality heat pumps since 1981

HeatWave SuperQuiet Standard Features
ThermoLink Heat Exchanger - The primary cause of premature heat pump demise is the failure of the heat exchanger. Ordinary heat exchangers are made from a cupronickel alloy. This cupronickel material is susceptible to attack from the sanitizers used in pools and spas, and from other related water chemistry conditions. Once the heat exchanger fails, the heat pump is ruined. The ThermoLink Heat Exchanger tube is made from pure titanium, and is virtually impervious to water-chemistry damage.

Microprocessor Computer Controls with Digital Thermostat " Consumer friendly technology instantly provides total comfort control using large easy-to-view digital L.E.D. status readouts and water resistant keypad, combined with a state-of-the-art microprocessor and dual thermostats.

Corrosion Proof Cabinet " UV treated high-impact plastic cabinet is impervious to deterioration with an easy access panel for cleaning and servicing. Rust proof, fade proof and crack resistant.

Additional Features:
Titanium Heat Exchanger
Patented counter-flow water management system
Heats water faster and more efficiently
Impervious to chemical corrosion
Durability without sacrificing performance
Lifetime warranty

Microprocessor Controlled with Digital Display
Accurate and easy to read bright blue display
Time and temperature settings
On-board self diagnostics
Microprocessor controlled defrost cycle

Scroll Compressor
State of the art technology
Highest efficiency
Quietest operation
Unsurpassed reliability
Superior durability

Corrosion Proof Cabinet
Rust proof
Fade proof
Impact resistant

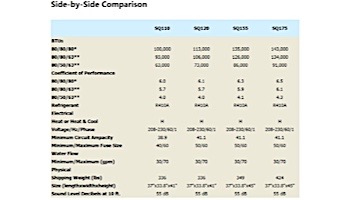

Specifications:
BTU's* - 113,000
COP** - 6.1
Water Flow - 30-70 GPM
Kilowatt Input - 5.4
Voltage/Hz/Phase - 208v-230v/60hz/1PH
Minimum Circuit Ampacity - 41.1
Min/Max Fuse Size - 50/60
Weight - 336 lbs.
Size (LxWxH) - 37"x33.8"x41"
Decibels - 55 db
* ratings outside the scope of the ARI standard 1160 water temp/ambient air/relative humidity
** rated in accordance with ARI standard 1160 water temp/ambient air/relative

Features and details

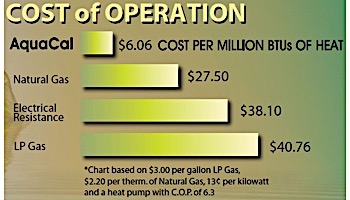

• A heat pump uses nature’s ‘free heat’ from the air to heat your pool water

• Electricity is only needed to transfer the heat, not create it

• Significantly less expensive than gas or electric heating

• Programmable thermostats for stable temperature control


Resources

Brochure
Brochure
Owners Manual
Thermolink Heat Exchanger Info
Winterizing Instructions

Warranty
