Get the most out of your pool heating investment!
Features
- High performance ThermoLink® titanium heat exchanger
- Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F

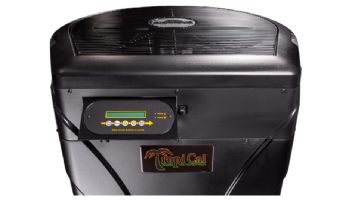

- Lockable, flip-out control panel protected against sun and weather
- Built-in drain pan for condensate management
- Impact resistant, rust and fade proof cabinet
- Quieter than conventional heat pumps
- Smart microprocessor control with LCD display

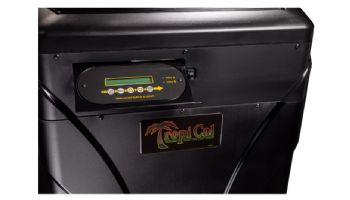

- Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
- Digital control panel with 24 character full-text display provides easy-to-read menu options and unit status
- Ability to connect to most external controllers
- Hybrid functionality can initiate a gas heater when an extra boost of heat is needed
Rated in accordance with AHRI standard 1160.
Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app. Additional purchase of PoolSync WiFi Controller required.
T055AHDSBLH |
Heat & Cool |
Heat Only |
BTUs |
51,000 |
Electrical |
kW Input 2.7 |
Refrigerant |
R410A |
Heat Exchanger |
Tube in Tube |
Voltage/Hz/Phase |
208-230/60/1 |
Minimum Circuit Ampacity |
19.1 |
Maximum Fuse Size |
30 |
Water Flow Min/Max (gpm) |
20/45 |
Physical Dimensions (in) |
34" x 34" x 28" |

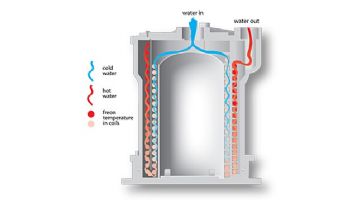

At the heart of your AquaCal heat pump is the patented ThermoLink® Heat Exchanger. The primary cause of premature heat pump demise is the failure of the heat exchanger. Ordinary heat exchangers are made from a cupronickel alloy. This cupronickel material is susceptible to attack from the sanitizers used in pools and spas, and from other related water chemistry conditions. Once the heat exchanger fails, the heat pump is ruined.
The ThermoLink® Heat Exchanger tube is made from titanium, and is virtually impervious to water-chemistry damage.
Titanium is a super-strong and long-lasting metal making it perfect for the pool environment. Not all Titanium heat exchangers are created equal however. Only ThermoLink® Titanium technology uses a patented water management system that maximizes surface contact of pool water with our Titanium Heat Exchanger. This patented hydraulic design adds only 1 PSI at 30 gpm, increasing compatibility with two-speed & variable speed pumps.
This is the most important factor in determining the efficiency of your heat pump. Generally, the greater the heat transfer, the greater the efficiency of your heat pump. And let’s face it, the reason most people buy a heat pump is because they want to get the absolute most for their heating dollar.
AquaCal heat pumps featuring ThermoLink® Titanium technology offer you maximum strength, durability and performance and we are so sure of it that we guarantee our Titanium Heat Exchanger for the life of your heat pump. This is just one more reason that AquaCal® is America’s leading heat pump manufacturer.
