Product description

• Requires a minimum 3" sump depth
• Single
• Floor:460 GPM at 1.46 fps
• Wall: 445 GPM at 1.4 fps
• 101 square inch opening

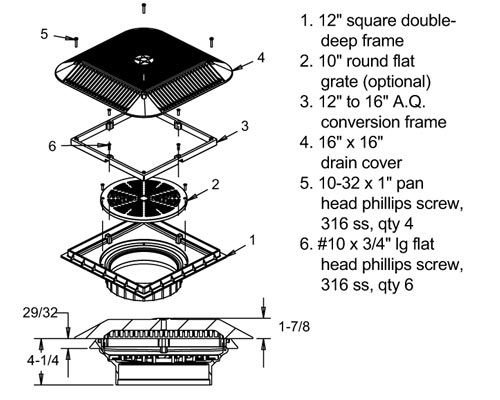

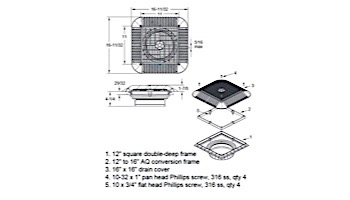

• Frame fits into existing 12" frame* with epoxy or screws or both; cover anchors into in-molded brass inserts in frame with four fine thread machine screws
• Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
• #316 stainless steel screws
• Manufactured from superior UV-resistant engineered polymers
• Easily and safely retrofits most brands’ 12" existing frames
• All components (cover, frame, screws) meet or exceed NSF 50/ASME/ANSIA112.19.8a-2008 national standards and ASTM G154 UV testing exposure

Features and details

• For single or multiple drain use

• Manufactured from superior UV-resistant engineered polymers

• All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011
  and NSF 50-2008 national standards and ASTM G154 UV testing exposure

• The xxx in all AquaStar part numbers is the color number. Sold with 1216xxx, not sold separately

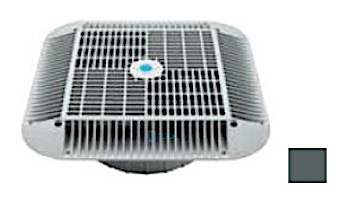

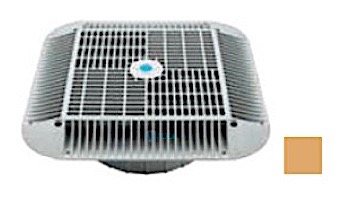

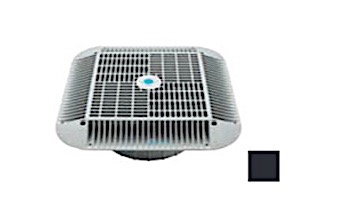

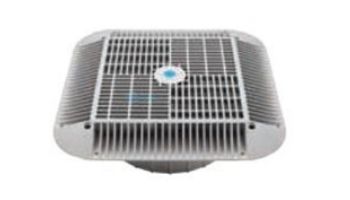

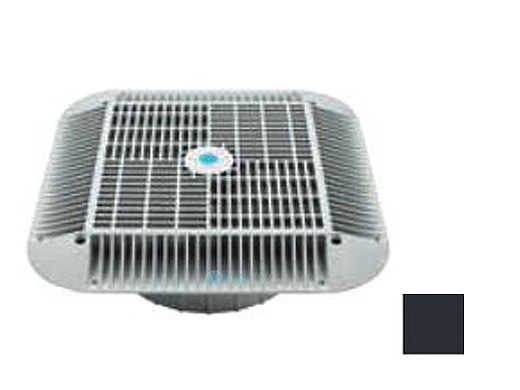

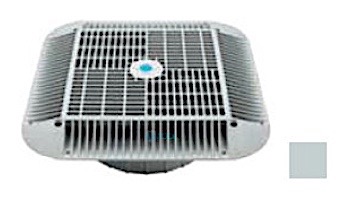

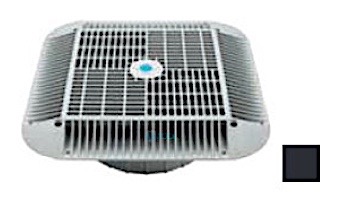

• Picture: White

• Product: Black


Resources

Spec Sheet
SOFA Installation Instructions
VGBA 2017 Product Specifications

Warranty

Limited Warranty: AquaStar is committed to and takes pride in the quality products that it manufactures. Accordingly, AquaStar maintains high standards for the materials and workmanship that it invests in its products. AquaStar warrants its products to be free from defects in material and workmanship for a period of one year from the date of original installation. This limited warranty will be applicable only if the product manufactured by AquaStar is the sole and exclusive cause of a defect. Products that fail or become defective during the warranty period, except as a result of color-fading, improper installation, bad water chemistry, accidents or negligence on behalf of the owner, freezing, earthquakes, fire, floods or other acts of nature, shall be repaired or replaced at Aqua- Star’s option.
