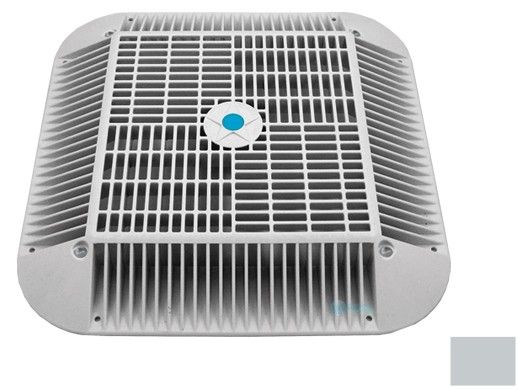

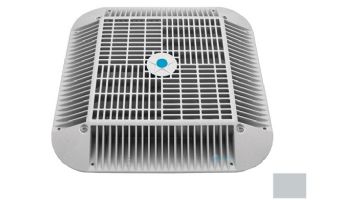

Home AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103

AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103 AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103 AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103 AquaStar 16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) | Light Gray | 1216103
$120.71

Quantity:
Platinum Preferred Manufacturer
  • Requires a minimum 3" sump depth
  • Use R1216xxx for 1" deep frames (Hayward, Waterway, American Pre-fab, CMP
  • Retrofits over all existing sumps/frames up to 15"
  • The xxx in all AquaStar part numbers is the color number
  • Picture: White
  • Product: Light Gray
OVERVIEW
16" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 12" Square 3/4" Deep Retrofits (VGB Series) Light Gray

Features
  • Requires a minimum 3" sump depth
  • Single
    • Floor:460 GPM at 1.46 fps
    • Wall: 445 GPM at 1.4 fps
  • 101 square inch opening

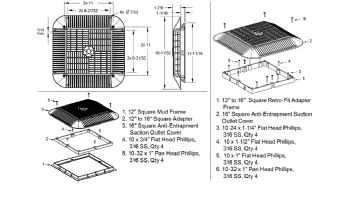

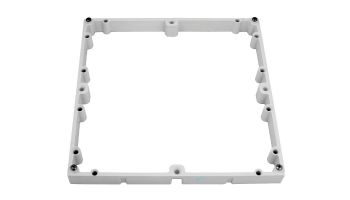

  • Frame fits into existing 12" frame* with epoxy or screws or both; cover anchors into in-molded brass inserts in frame with four fine thread machine screws

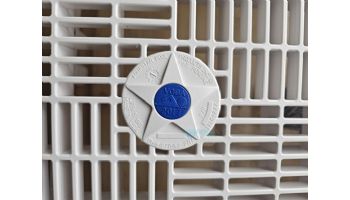

  • Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • Easily and safely retrofits most brands’ 12" existing frames
  • All components (cover, frame, screws) meet or exceed NSF 50/ASME/ANSIA112.19.8a-2008 national standards and ASTM G154 UV testing exposure
  • Replace every five years from the date of installation



Brand: AQUASTAR
