Home Pool Drains & Drain Covers 24" Main Drains & Sumps AquaStar 24" Square Mud Frame | with Four 12" Square Flat Grates | (VGB Series) | White | 24101
NOTICE: The Texas weather emergency in February has caused nationwide stock-outs on most products that will last months in many cases. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives, given that these back-orders are industry wide. There are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat is the quickest response. Please keep trying back via chat, email and phones as we can't answer them as fast as they come in but we are here, so keep trying!

AquaStar 24" Square Mud Frame | with Four 12" Square Flat Grates | (VGB Series) | White | 24101

AquaStar 24" Square Mud Frame | with Four 12" Square Flat Grates | (VGB Series) | White | 24101 AquaStar 24" Square Mud Frame | with Four 12" Square Flat Grates | (VGB Series) | White | 24101
$645.32

Quantity:
Platinum Preferred Manufacturer
  • Unblockable! No second suction outlet or backup SVRS required
  • Also available with four grates only for 3/4" deep retrofits p/n 24NFxxx
  • Manufactured from superior UV-resistant engineered polymers
  • The xxx on Aquastar part numbers is the color number
OVERVIEW

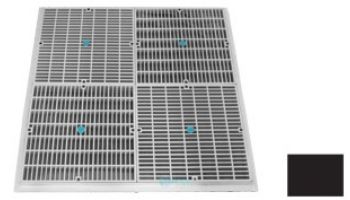

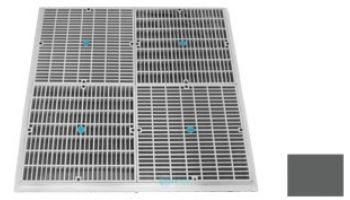

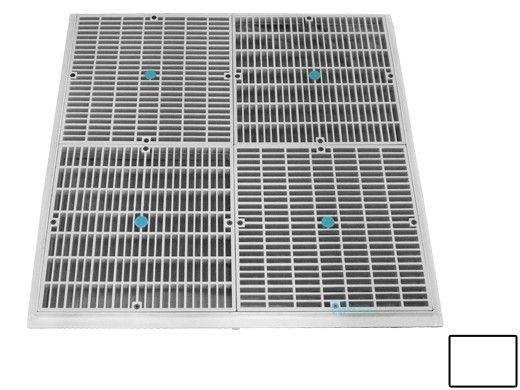

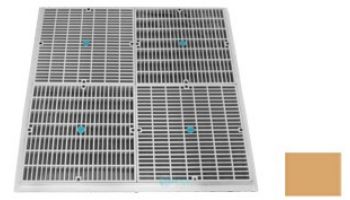

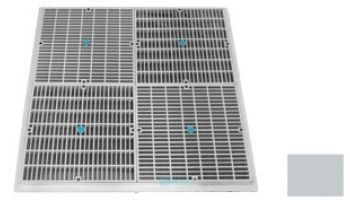

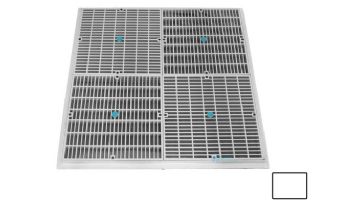

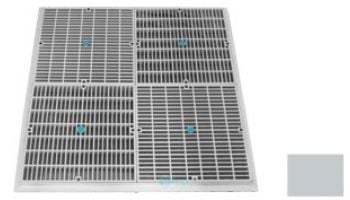

24" Square Mud Frame with Four 12" Square Flat Grates (VGB Series) White

Features
  • Single
    • Floor/wall: 1531 GPM at 1.4 fps
  • Sump Depth: 12'' Minimum
  • 352 square inch opening
  • Trademarked VGB compliance button easily identifies VGB 2008 compliant
  • cover from on deck and underwater
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • See installation instructions for details and special requirements
  • Installs flat - level with finish
  • All components (covers, frame, screws) meet or exceed ANSI/APSP 16-2011 andNSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
  • Replace every five years from the date of installation


Brand: AQUASTAR
SPECIFICATIONS
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
What is the life span of this drain grate?
A shopper on May 26, 2017
REVIEWS
4.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
1
0
0
0
Rated 4 out of 5
Easy to install. Really like that the cover is flat, which will help avoid toe stubbing
February 25, 2019
Purchased
over 4 years ago
