Home Pool Drains & Drain Covers Channel Drains AquaStar 32" Channel Drain with 3 Port Sump/"AV" Grate Anti-entrapment Suction Outlet Cover for Fiberglass without Gaskets (VGB Series) | White | 32CDAVFG101
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

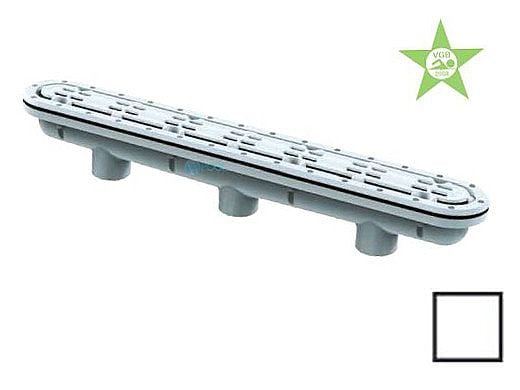

AquaStar 32" Channel Drain with 3 Port Sump/"AV" Grate Anti-entrapment Suction Outlet Cover for Fiberglass without Gaskets (VGB Series) | White | 32CDAVFG101

AquaStar 32" Channel Drain with 3 Port Sump/"AV" Grate  Anti-entrapment Suction Outlet Cover for Fiberglass without Gaskets (VGB Series) | White | 32CDAVFG101 AquaStar 32" Channel Drain with 3 Port Sump/"AV" Grate  Anti-entrapment Suction Outlet Cover for Fiberglass without Gaskets (VGB Series) | White | 32CDAVFG101 AquaStar 32" Channel Drain with 3 Port Sump/"AV" Grate  Anti-entrapment Suction Outlet Cover for Fiberglass without Gaskets (VGB Series) | White | 32CDAVFG101
$231.16

Quantity:
Platinum Preferred Manufacturer
  • For single or multiple drain use
  • Floor rated at 236 GPM at 3.4 fps
  • Manufactured from superior UV-resistant engineered polymers
  • Two drains in One!
OVERVIEW
The AquaStar line of suction outlet covers, compliant with the Virginia Graeme-Baker Pool and Spa Safety Act

Features
  • For single or multiple drain use (see installation instructions for plumbing, hydrostatic valve/drain pipe and single or multi-pump connections)
  • Single
    • Floor: 236 GPM at 3.4 fps
    • Wall: 136 GPM at 1.9 fps
    • Floor/wall: 106 GPM at 1.5 fps
    • Floor/wall: 70.4 GPM at 1.0 fps
  • 22.6 square inch opening
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • Three ports: bottom 2½" OD, 2" ID S/S; inside 2" threaded FPT; two 2" threaded plugs included
  • All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
  • Must use transitional glue when attaching to PVC pipe
  • Replace every five years from the date of installation


Brand: AQUASTAR
