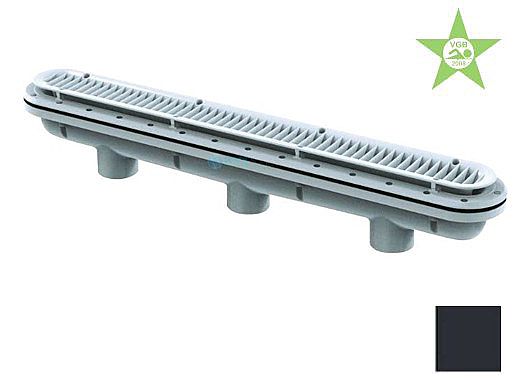

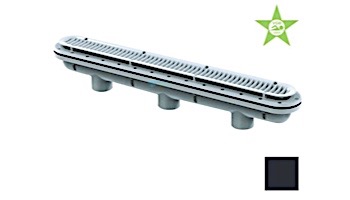

Home AquaStar 32" Channel Drain with 3 Port Sump/Debris Catcher Anti-entrapment Suction Outlet Cover for Fiberglass without Gasket (VGB Series) | Black | 32CDLTFG102

AquaStar 32" Channel Drain with 3 Port Sump/Debris Catcher Anti-entrapment Suction Outlet Cover for Fiberglass without Gasket (VGB Series) | Black | 32CDLTFG102

$364.35
AquaStar 32" Channel Drain with 3 Port Sump/Debris Catcher Anti-entrapment Suction Outlet Cover for Fiberglass without Gasket (VGB Series) | Black | 32CDLTFG102
AquaStar 32" Channel Drain with 3 Port Sump/Debris Catcher Anti-entrapment Suction Outlet Cover for Fiberglass without Gasket (VGB Series) | Black | 32CDLTFG102
AquaStar 32" Channel Drain with 3 Port Sump/Debris Catcher Anti-entrapment Suction Outlet Cover for Fiberglass without Gasket (VGB Series) | Black | 32CDLTFG102
The AquaStar line of suction outlet covers, compliant with the Virginia Graeme-Baker Pool and Spa Safety Act.

Features
  • Uniquely engineered concave/convex design allows for superior debris catching while exceeding UL articulate probe finger and knuckle ASME A112 2008 tests
  • For single or multiple drain use (see installation instructions for plumbing,hydrostatic valve/drain pipe and single or multi-pump connections)
  • Single
    • Floor: 196 GPM at 1.3 fps
    • Wall: 192 GPM at 1.2 fps
    • Floor/wall: 236 GPM at 1.5 fps
    • Floor/wall: 156.2 GPM at 1.0 fps
  • 50.1 square inch opening
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • Three ports: bottom 2½" OD, 2" ID S/S; inside 2" threaded FPT; two 2" threaded plugs included
  • All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
  • Must use transitional glue when attaching to PVC pipe
  • Replace every five years from the date of installation
