Home Pool Drains & Drain Covers Channel Drains AquaStar 32" Channel Drain Pinhole Anti-entrapment Suction Outlet Cover with 3 Port Sump for Fiberglass without Gasket (VGB Series) | White | 32CDPHFG101
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email are the best. Please keep trying back via chat and email as we can't answer them as fast as they come in but we are here, so keep trying! We're currently 20+ days behind on returning email (email is the best way to get a reply when all chat associates are busy).

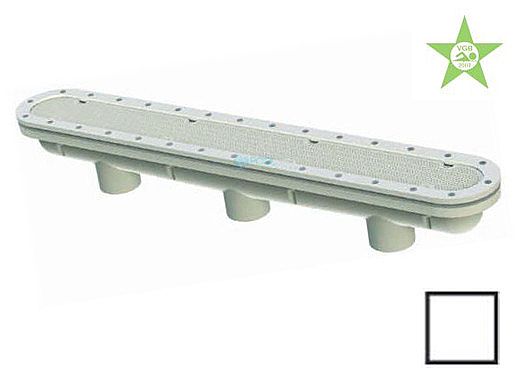

AquaStar 32" Channel Drain Pinhole Anti-entrapment Suction Outlet Cover with 3 Port Sump for Fiberglass without Gasket (VGB Series) | White | 32CDPHFG101

AquaStar 32" Channel Drain Pinhole Anti-entrapment Suction Outlet Cover with 3 Port Sump for Fiberglass without Gasket (VGB Series) | White | 32CDPHFG101 AquaStar 32" Channel Drain Pinhole Anti-entrapment Suction Outlet Cover with 3 Port Sump for Fiberglass without Gasket (VGB Series) | White | 32CDPHFG101 AquaStar 32" Channel Drain Pinhole Anti-entrapment Suction Outlet Cover with 3 Port Sump for Fiberglass without Gasket (VGB Series) | White | 32CDPHFG101
$231.16

Quantity:
Platinum Preferred Manufacturer
  • For single or multiple drain use
  • Floor: 268 GPM at 3.1 fps
  • Two drains in one!
  • Manufactured from superior UV-resistant engineered polymers
  • The xxx on Aquastar part numbers is the color number
OVERVIEW
The AquaStar line of suction outlet covers, compliant with the Virginia Graeme-Baker Pool and Spa Safety Act.

Features
  • For single or multiple drain use (see installation instructions for plumbing, hydrostatic valve/drain pipe and single or multi-pump connections)
  • Single – 3" sump depth
    • Floor: 268 GPM at 3.1 fps
    • Wall: 172 GPM at 2.0 fps
    • Floor/wall: 131 at 1.5 fps
  • 27.9 square inch opening
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers

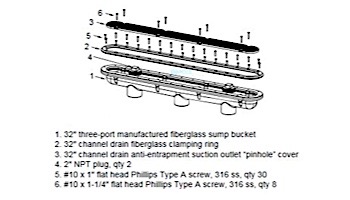

  • Three ports: bottom 2½" OD, 2" ID S/S; inside 2" threaded FPT; two 2" threaded plugs included
  • Permanently attached gasket reduces gasket alignment problems
  • All components meet or exceed ANSI/ APSP 16-2011 and NSF 50-2008 national standards and ASTM G154 UV testing exposure
  • Must use transitional glue when attaching to PVC pipe

















Brand: AQUASTAR
