AquaStar 8" Suction Outlet Cover with 4" Socket | 8HP101D

AquaStar 8" Suction Outlet Cover with 4" Socket | 8HP101D AquaStar 8" Suction Outlet Cover with 4" Socket | 8HP101D

Platinum Preferred Manufacturer
  • Fits: AquaStar (All Pre-VGB 8" Models)
  • American, Pentair,Color Match, Waterway and most Custom Molded (CMP) –
    at least two mud frame screws must be used to secure cover

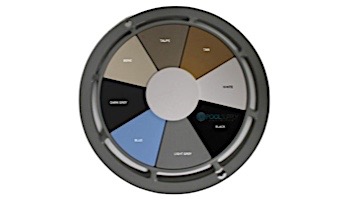

  • The xxx in all AquaStar part numbers is the color number
  • For single or multiple drain use in concrete or tile pools and spas (see installation instructions)
  • Single – Sumpless
    • Floor/wall: 224 GPM at 6.3 fps
    • Floor/wall: 74.3 GPM at 1.5 fps
  • Floor (1.5" Pipe): 177 GPM at 5.9 fps
  • Wall (1.5" Pipe): 122 GPM at 3.4 fps
  • 15.8 square inch opening
  • Additional sump versions also available
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • Easily and safely retrofits most brands’ existing 8" frames and sumps that R8HPxxx does not fit*Patent-pending technology
  • Meets or exceeds ANSI/APSP 16-2011 and NSF 50-2008 national standards and ASTM G154 UV testing
  • Listed with IAPMO R&T
  • Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
