Home Pool Drains & Drain Covers 9" Main Drains & Sumps AquaStar 14" Square Grate with Double Deep Sump Bucket with 6" Spigot (VGB Series) White | 914101E
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

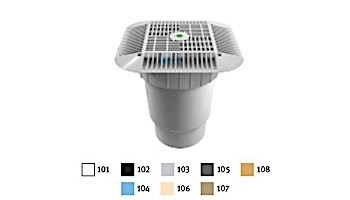

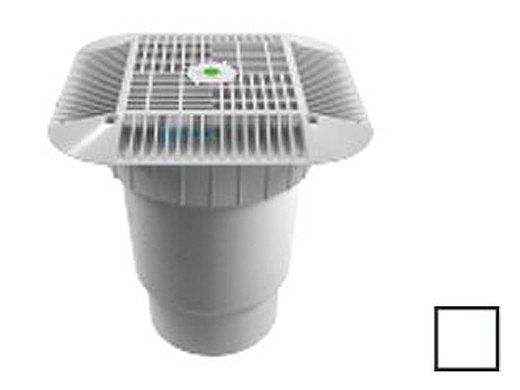

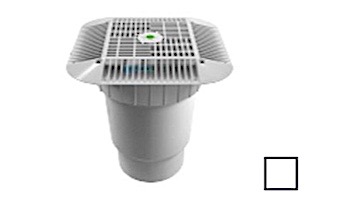

AquaStar 14" Square Grate with Double Deep Sump Bucket with 6" Spigot (VGB Series) White | 914101E

AquaStar 14" Square Grate with Double Deep Sump Bucket with 6" Spigot (VGB Series) White | 914101E AquaStar 14" Square Grate with Double Deep Sump Bucket with 6" Spigot (VGB Series) White | 914101E
$225.40

Quantity:
Platinum Preferred Manufacturer
  • Use part # R914xxx for 1" deep frames (Hayward, Waterway, American Pre-fab, CMP)
  • The xxx in all AquaStar part numbers is the color number
  • Sold with 914XXX, not sold separately
Purchase Options
Show 2 More Purchase Options
OVERVIEW
Features
  • For single or multiple drain use(see installation instructions)
  • Requires a minimum 3" sump depth
  • Single
    • Floor: 560 GPM at 2.1fps
    • Wall: 300 GPM at 1.2 fps
  • 84 square inch opening
  • Retrofit adapter frame easily and safely retrofits most brands’ existing 9" mud frame* with epoxy or screws or both; cover anchors into in-molded brass inserts in frame with four fine thread machine screws
  • Ideal for retrofitting over all existing sumps/frames up to 13. by anchoring directly into pool finish (plaster, tile, fiberglass, etc.) using four brass anchors and stainless screws in kit #BIK4
  • Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers
  • All components (cover, sump, screws)meet or exceed ANSI/APSP 16-2011 and NSF50-2008 national standards and ASTM G154 UV testing exposure




Brand: AQUASTAR
