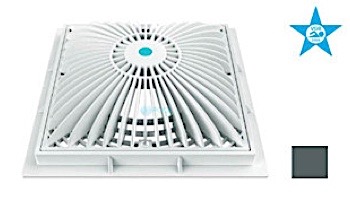

Product description

• For single or multiple drain use
• (see installation instructions)
• Single – 3" sump depth / min. 2½" pipe
• Floor: 258 GPM at 2.3 fps
• Wall: 274 GPM at 2.5 fps
• Floor/wall: 172 GPM at 1.5 fps
• Floor/wall: 114.7 GPM at 1.0 fps
• 36.8 square inch opening
• Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
• #316 stainless steel screws
• Manufactured from superior UV-resistant engineered polymers
• Easily and safely retrofits to 9" square 3/4" deep frames
• Additional sump versions also available
• All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
• Replace every five years from the date of installation



Features and details

• Fits: AquaStar (all standard 9" square), Pentair (#1 selling) with 3/4" deep existing frames and four screw hole pattern

• For single or multiple drain use (see installation instructions)

• Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

• Manufactured from superior UV-resistant engineered polymers

• #316 stainless steel screws

• The xxx in all AquaStar part numbers is the color number


Resources

Spec Sheet
SOFA Installation Instructions
VGBA 2017 Product Specifications

Warranty

Limited Warranty: AquaStar is committed to and takes pride in the quality products that it manufactures. Accordingly, AquaStar maintains high standards for the materials and workmanship that it invests in its products. AquaStar warrants its products to be free from defects in material and workmanship for a period of one year from the date of original installation. This limited warranty will be applicable only if the product manufactured by AquaStar is the sole and exclusive cause of a defect. Products that fail or become defective during the warranty period, except as a result of color-fading, improper installation, bad water chemistry, accidents or negligence on behalf of the owner, freezing, earthquakes, fire, floods or other acts of nature, shall be repaired or replaced at Aqua- Star’s option.
