Home Pool Drains & Drain Covers 20" Main Drains & Sumps AquaStar 20" Full Circle Suction Outlet with Hydrostatic Valve and Collector Tube | White | FCHV101
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

AquaStar 20" Full Circle Suction Outlet with Hydrostatic Valve and Collector Tube | White | FCHV101

$310.12
AquaStar 20" Full Circle Suction Outlet with Hydrostatic Valve and Collector Tube | White | FCHV101
AquaStar 20" Full Circle Suction Outlet with Hydrostatic Valve and Collector Tube | White | FCHV101
Features
  • For single or multiple drain use (see installation instructions)
  • Single – with drain grate
    • Floor/wall: 2" pipe – 158 GPM at 1.2 fps
  • 42 square inch opening
  • #316 stainless steel screws
  • When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate
  • Disposable plaster shield included to prevent debris from entering sump and to retain shape during pool finish

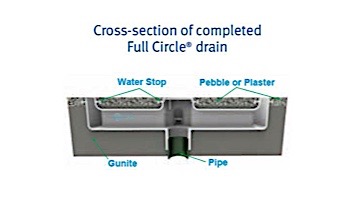

  • Waterstop around edges prevent water leaks
  • Unique circle design is filled with plaster/pebble to blend into pool finish
  • Manufactured from superior UV-resistant PVC
  • One port:

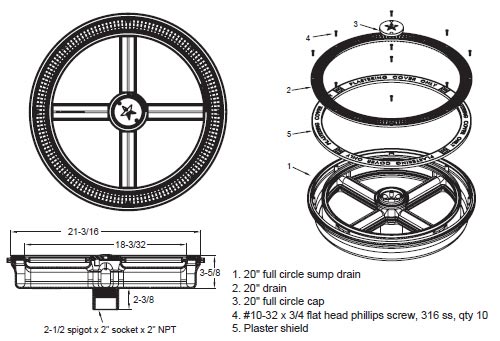

    • bottom 2 1/2" spigot x 2" socket x 2" NPT
  • All components meet or exceed ANSI/APSP 16-2011 and NSF 50-2008 national standards and ASTM G154 UV testing exposure




Brand: AQUASTAR
