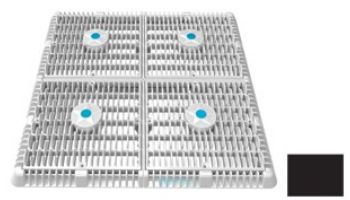

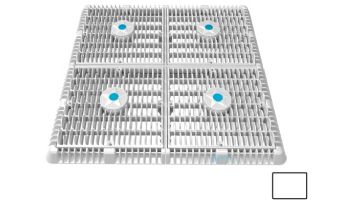

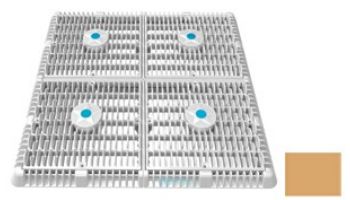

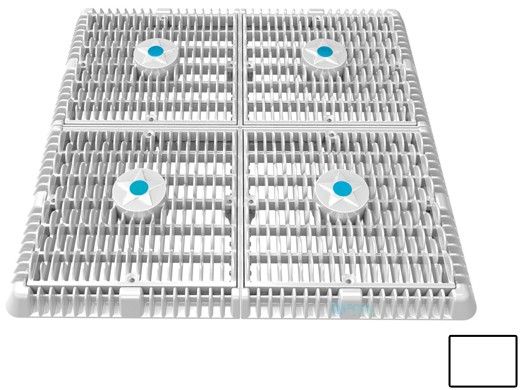

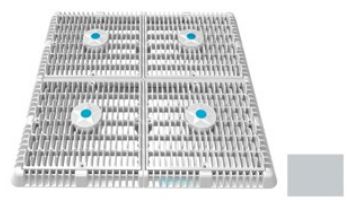

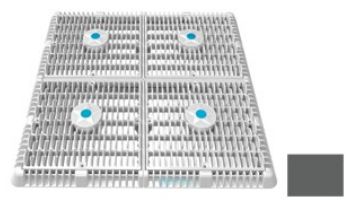

AquaStar Four 9" Square Wave Suction Outlet Covers with Vented Riser Rings and screws for 18" Frame Retrofits (VGB Series) | White | WAV18WRNF101

AquaStar Four 9" Square Wave Suction Outlet Covers with Vented Riser Rings and screws for 18" Frame Retrofits (VGB Series) | White | WAV18WRNF101 AquaStar Four 9" Square Wave Suction Outlet Covers with Vented Riser Rings and screws for 18" Frame Retrofits (VGB Series) | White | WAV18WRNF101
$230.26

Quantity:
Platinum Preferred Manufacturer
  • For single or multiple drain use
  • Four grates only for 3/4" deep retrofits
  • Manufactured from superior UV-resistant engineered polymers
  • The xxx in all AquaStar part numbers is the color number
OVERVIEW
Four 9" Square Wave Suction Outlet Covers with Vented Riser Rings and screws for 18" Frame Retrofits (VGB Series) White

Features
  • For single or multiple drain use 6" minimum sump depth
  • Single –
    • Floor/wall: 628 GPM at 1.1 fps
    • Floor/wall: 551.1 GPM at 1.0 fps
  • When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate
  • 176.8 square inch opening
  • Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
  • #316 stainless steel screws
  • Manufactured from superior UV-resistant engineered polymers

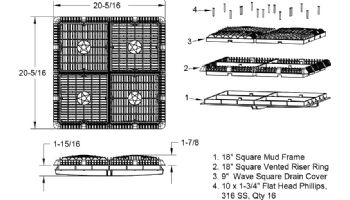

  • Easily and safely retrofits to 18" square 3/4" deep frames
  • All components (covers, frame, screws) meet or exceed ANSI/APSP 16-2011 and
  • NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
  • Replace every five years from the date of installation



Brand: AQUASTAR
