Home Pool Salt Chlorine Generators AutoPilot Chlorine Generators AutoPilot Total Control Salt Chlorine Generator Power Supply | 75003
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

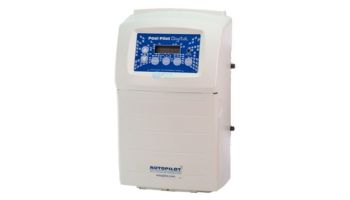

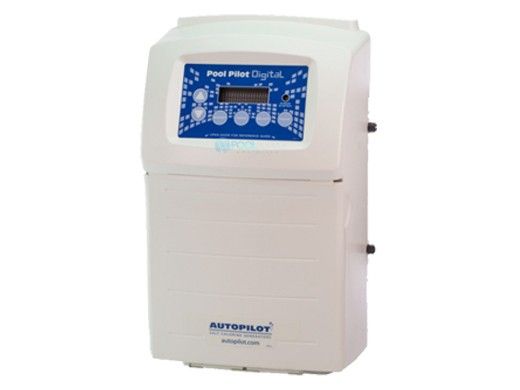

AutoPilot Total Control Salt Chlorine Generator Power Supply | 75003

AutoPilot Total Control Salt Chlorine Generator Power Supply | 75003
$774.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Gold Preferred Manufacturer
  • Total Control System requires the purchase of:
    • Total Control Power Supply
    • Total Control Chemistry Controller
    • Salt Cell & Manifold Kit
    • Acid Feeder Tank w/ Pump

  • For in-ground pools from 20,000 to over 52,000 gallons
  • Controlled flow rate for optimum chlorine production
  • Includes 952 cell cord
OVERVIEW
No other salt chlorine system comes packed with features like the AutoPilot Total Control System. Maintaining your pool has never been easier!

No More Buying Chlorine
No More Manually Adding Acid into the Pool
No More Water Chemistry Worries


Features:
Patented temperature compensation for chlorine output (not applicable w/ ORP Controller)
Programmable Microprocessor Control
Multi-Language digital display (English, Spanish, French, German)
Digital control power to the SuperCell
Tri-sensor circuitry to monitor water flow, water temperature, and salt level
Internal relay for controlling an external pump or acid feeder
On-board diagnostics and test programs
Electronic controller interface for Jandy„, Polaris„, or Pentair IntelliTouch„ controllers
pH Sensor
Constantly measures pH level
Activates acid pump when pH level rises above set point
ORP Sensor
Constantly measures active sanitizer level in pool water
Signals Digital Chlorine Generator to produce chlorine based on demand
Flow Cell
Sensor protection
Provides proper monitoring environment for sensors
Water sample tap for manually monitoring water chemistry

NOTE: Pool Pilot Digital Total Control System is a tandom system that must be purchased as a unit. If you currently own the Pool Pilot Digital you cannot purchase the Chemistry Controller separately. This unit uses a modified version of the Pool Pilot Digital married to the Chemistry Controller.

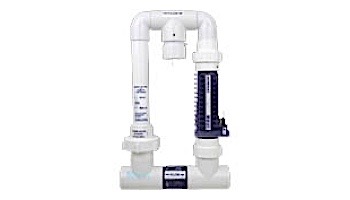

AutoPilot's patented bypass manifold is a pre-assembled unit designed to control the flow rate delivered to our cell. The spring check valve in the manifold allows excess flow, over 20 gpm, to by-pass the cell. The water in turn flows at a controlled rate through the cell where it is super chlorinated. The in-line strainer on the inlet side of the manifold protects the tri-sensor and production cell from debris that might bypass the filter. The location of the strainer next to a connection union makes periodic cleaning easy. The design of our patented bypass manifold guarantees optimum chlorine production and simplifies the installation process of the AutoPilot® Purifing System.


Manifold features include:
1.) In-line Strainer - The in-line strainer protects the Tri-Sensor and the Cell from debris that may by-pass the filter and obstruct either component. The location of the strainer in the connecting union makes it easy to remove for periodic cleaning.
2.) Tri-Sensor - The Tri-Sensor is a three way sensing device which measures flow, salt level, and water temperature.
3.) Chlorine Production Cell - The cell produces 100% pure Sodium Hypochlorite in your pool plumbing returning it to your pool.
4.) Check Valve - The check valve in the Manifold allows all water flowing through the plumbing at a rate greater than 20 gallons per minute to by-pass the production cell to maximize the production of chlorine.

Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions
I have an autopilot digital controller that is older and the panel buttons have failed and cracked so I only need the unit is this the unit to buy?
A shopper on Dec 7, 2016
I have an older pool pilot model DIG 220 that is connected to a remote operated pool-spa control and I want to replace the Dig 220. Should I replace it with the same Dig 220 model or a newer one that can control the pool/spa?
ivo P on Feb 12, 2019
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Excellent
Works as it should. Replaced a generator that suddenly stopped working.
August 25, 2020
Purchased
over 3 years ago
RESOURCES
WARRANTY
See PDF Warranty document below for full warranty information.

AutoPilot / AquaCal requires purchase of products from an authorized dealer for warranty to be valid and Pool Supply Unlimited is an authorized dealer.

Important note on AutoPilot replacement salt cells
Pool Supply Unlimited is an authorized dealer for AutoPilot products, which means the limited warranty included with replacement cells is valid when you buy them here. Not all online stores have this designation. Warranty registration for AutoPilot salt cells is simple and can be completed here.
