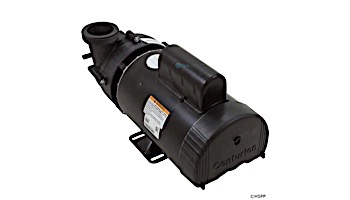

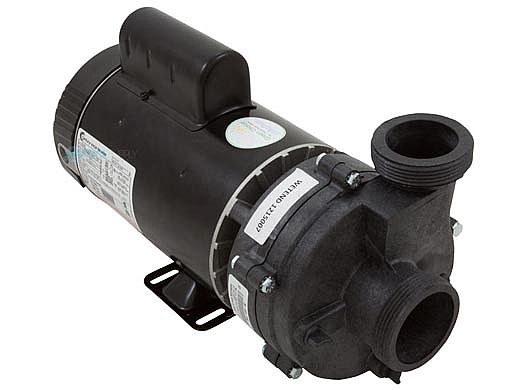

Pump BWG Vico Ultimax 4-HP 2-Speed 56-Frame
Balboa Water Group/Vico pumps provide long life, excellent performance, value pricing and configuration flexibility all in a cost-effective package. With flow rates that can exceed 230 gallons per minute, Vico pumps are ideal for value- priced applications in any size spa. With lower price points, ease of installation, high flow rates, and energy efficient packages, Vico pumps offer the options you need and spa owners truly appreciate.
Features
- Compact 56 frame design
- Dual Speed Pump (can be wired for one speed)
- Energy efficient and whisper quiet
- Multi-direction volute mounting options deliver a range of plumbing configurations
- All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure
Kit Includes
- 1215007 - Wet End, BWG Vico Ultimax, 4.0hp, 2"mbt, 48/56fr

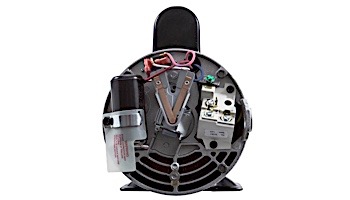

- B2235 - Motor, Century, 4.0 Horsepower, 230v, 2 Speed, 56 Y Frame
Specifications
Complete Pump Type |
Portable Spa Pump |
Speed |
2 Speed (2-Spd) |
Motor Voltage |
230v |
Drain Plug Location |
6,9 o`clock |
Pump to Motor Foot Types |
6 |
Suction Auxiliary Port |
3/8" barb (b) 1ea |
Suction Style |
Center |
Suction Connection (Physical Dimension) |
3-1/16"od |
Suction Connection Type |
Male Buttress Thread (mbt) |
Suction Pipe Size |
2" |
Discharge Auxiliary Port |
3/8" barb (b) 1ea |
Discharge Style |
Side |
Discharge Connection (Physical Dimension) |
3-1/16"od |
Discharge Connection Type |
Male Buttress Thread (mbt) |
Discharge Pipe Size |
2" |
Horsepower |
4.0hp |
Motor Frame |
56 Frame Thru-Bolt |
Motor Amperage/Wattage |
12.0A/3.0A |
Manufacturer |
Vico/Balboa |
Pump Model |
Ultimax |
Manufacturer Impeller Number |
1212008 green/orange/red/brown |
Volute Fastening Type |
4 Bolts 4 Nuts |
Volute/Sealplate Number |
1211027 |
