Home Balboa V-Series Digital Control System VS500Z Retro Fit Complete Kit | VL-403 Rectangular Spaside | 54216-Z

Balboa V-Series Digital Control System VS500Z Retro Fit Complete Kit | VL-403 Rectangular Spaside | 54216-Z

This item has been discontinued.

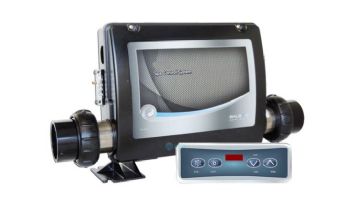

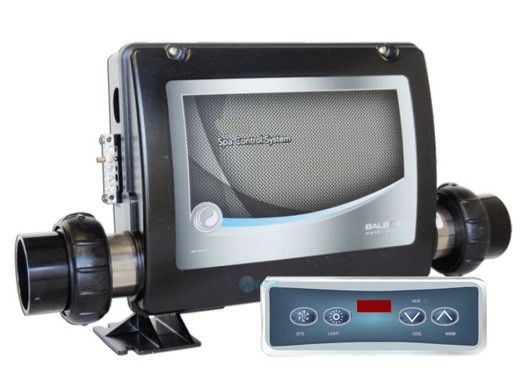

Balboa V-Series Digital Control System VS500Z Retro Fit Complete Kit | VL-403 Rectangular Spaside | 54216-Z
The Perfect Spa Retrofit Kit

The Value Pack Retrofit kit is based on the Value Series (VS) family of hot tub controls which were designed using Balboa's patented M7 temperature and flow sensor technology. The VS systems have a plastic enclosure to eliminate corrosion and suppress water intrusion. Also, the connectors are built onto the circuit board to minimize wires and simplify service. The Value Pack is meant to be installed by a spa professional who can rest easy knowing he's working with a kit that is known for reliability, ease of installation and serviceability

Features & Benefits
  • Replaces failure-prone mechanical pressure/flow switch
  • Can be plumbed to either suction or pressure side of pump
  • 120/240V convertible power
  • Custom plastic enclosure
  • M7 flow/ temperature sensors
  • Rigorously tested
  • US & Canadian safety approvals
Next Generation of Entry Level Hot Tub Control Systems

The VS Retrofit Kit family of hot tub control systems were designed using Balboa’s patented M7 temperature and flow sensor technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.

VS Series Retrofit Kits
KIT P/N 54216-Z 54217-Z 54218-Z 54219-Z 54220-Z
System Model VS500Z VS501Z VS510SZ VS500Z VS501Z
System P/N 54368-HC 54356-HC 54371-HC 54368-HC 54356-HC
Heater Yes (5.5kW stainless steel flow thru)
M7 Technology Yes (no pressure switch needed)
2-spd pump 1 (120/240V) Yes Yes Yes Yes Yes
1-spd pump 2 (240V) No No Yes No No
Blower (120/240V) No Yes
or 1-spd Pump
Yes No Yes
or 1-spd Pump
Ozone (120/240V) Yes Yes Yes Yes Yes
Spa light (12V/12W) Yes Yes Yes Yes Yes
Panel Model Lite Duplex Lite Duplex Serial Standard Mini-Oval Mini-Oval
Panel P/N 54105 51676 53189 52487 52144
Panel Dimensions (in) 6.32 x 2.25 6.32 x 2.25 7.35 x 3.26 4.34 x 1.58 4.34 x 1.58
Panel Dimensions (cm) 16.05 x 5.72 16.05 x 5.72 18.67 x 8.28 11.02 x 4.01 11.02 x 4.01
Adapter P/N: 11109 11109 11109 10165 No No
Overlay P/N* No 10752 10402 No 11127

Kit also includes all necessary cords, an appropriately sized bezel, and one 12V bulb assembly

Designed for Easy Installation & Service
The VS family is based on a common universal control platform, which increases feature flexibility while reducing installation and configuration problems. The VS family has exceptionally good feature flexibility, so its performance is competitive with much higher end products.

Flexible, Highly Reliable, Feature Rich
The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. It has a 3.0kW heater, and supports mini, duplex or standard digital panels.
