Flex-Pro A3 Series Peristaltic Pump for high pressure and high accuracy applications.
- Feed Rates to 35.19 GPH
- Pressures to 125 PSI
- 4-20mA (A3V only), Pulse Input (A3V only) and Manual Speed Control
- 2500:1 Turndown ratio
- Patented Tube Failure Detection
- Brushless DC Motor
- NEMA 4X (IP 66) Washdown
- 2 Year Warranty
- NEW! Flex-A-Prene® Tubing with more than 4X longer tube life
- Patented Tube Failure Detection
- Quick Disconnect Fittings Available for Flex-A-Prene
Specifications:

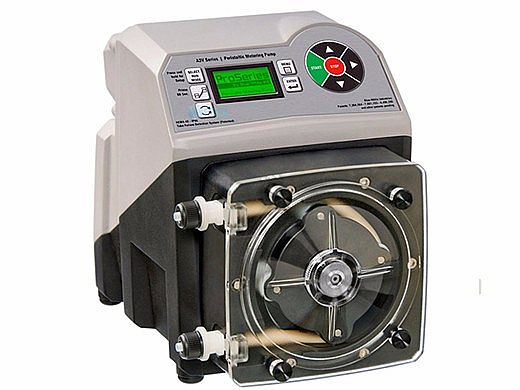

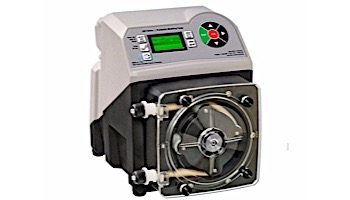

- Flex-Pro A3 Peristaltic Metering Pump
- Single manual output control (manual/local control only)
- 125 RPM (maximum rotor rotation speed)
- 115V/60Hz, porwer cord NEMA 5/15 plug (US)
- 3/8" OD x 1/4" ID Tube Compression Fitting, Natural PVDF (Kynar), available for A3 models only

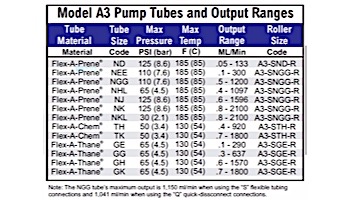

- Flex-A-Prene .375 ID (30 PSI max pressure - longer life)
Capabilities:
- 2500:1 turndown ratio
- Output rates to: 33.3 GPH (126 LPH) and pressures to 125 PSI (8.6 Bar)
- Inject at maximum pressure in either direction (clockwise and counter clockwise)
Communication & Interface:
- SCADA Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external speed control and 0-30 VDC / contact closure remote start/stop
- Operator friendly digital touch pad with menu driven software
- VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed, output rate, input signal values, service and alarm status
- Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local control setting, motor on, fault, current operating mode, and others
- Compatible with Blue-White's output Flow Verification Sensor (FVS) system
Superior Engineered Design:
- Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze, unparalleled accuracy, and tube life
- Heavy duty rotor - single piece plastic rotor means no flexing and increased accuracy with no metal springs or hinges to corrode
- No maintenance brushless variable speed motor
- Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements for food contact applications
Patented Features:
- Patented Tube Failure Detection (TFD) system. Senses tube failure by detecting chemical in the pump head. No false triggering
- Patented Component Control System. A method used to control two or more positive displacement pumps in a system
- Patented feature to extended tube life
- Patented Safety Switch. Ensures safety of operator during regular pump head maintenance
