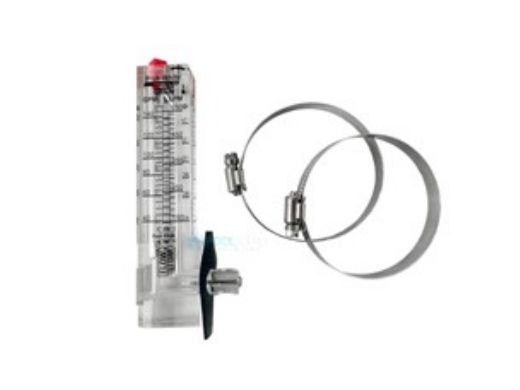

Blue White U-300 Series 2" PVC Flowmeter | Vertical Up Flow | 40-150 GPM | U-30200P

$128.40

Compact Size Big Performance

A rare earth magnet is located within the red PVDF float of the new F-300 flowmeters. When the magnet passes through the Alarm Trigger Zone (Hysteresis) of the Sensor Accessory, the built-in contact closure switch sends a signal to external devices.

Note: Two alarms can be placed onto one meter to obtain both 'Flow Switch' and 'Flow Sensor' capabilities.

Features

NSF 50 LISTED 1", 1.25", 1.5", 2" (L2), 2.5", 3", 4", and 6" (L3) - Horizontal flow only
Well suited for closed pipe installations
Easy to read dual scale (GPM / LPM), screen printed on both sides of the meter body
Acceptable for outdoor installations (direct sunlight okay)
Pitot Tube (impact tube) design makes it easy to install on existing pipe
One piece, machined acrylic meter body, annealed for added strength and chemical resistance
Included SS clamps and gasket seal
Standard and Low Flow options available
For use on PVC or Copper Pipes (refer to literature)

Specifications

Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)
Max. fluid temp.: 190 F (88 C) @ 0 PSI
Max. ambient temp.: 14 to 110 F/ -10 to 43 C
Note: Temperature & Pressure ratings of meter only. Actual pipe rating may vary.
Full scale accuracy: +/- 5%
Power requirement: No power required
Enclosure: NEMA 4X (IP56)
Approximate shipping wt:
1"-4" units: 1 lb. (.45 kg)
6"-8"units: 2 lb. (.91 kg)

Simple

Reduced straight pipe requirements by 50%
Calibrated to measure flow in SH40 / SCH 80 (ASTM D-1785), Copper Tube, and PN10 / PN16 PVC (DIN 8062)
Measure flow from 2 to 10 feet per second (pool industry standard)
Same simple installation, install in 2 minutes or less

Value

Durable CBC-machined body for high quality and improved accuracy
priced competitively
Less than 1 PSI pressure drop
New UV and chemical resistant red cap and non-stick red float
No metals in fluid path. Safe to use with salt chlorine generators

Safety

Optional F-300S flow switch provides a dry contact capable of triggering chemical pump or other external equipment

Materials of Construction

Meter Body:Cast Acrylic
Float: Standard range models = 316SS - Low range models = Teflon
Gasket: Neoprene
Pipe Clamp: 300 series Stainless Steel
Pitot screw: 1"thru 2" models only - 300 series stainless Steel

Installation Requirements

Minimum Straight Pipe Length Requirements - The meter's accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter.

Mounting location

F series meters must be mounted at the vertical (twelve o'clock) position
Must be mounted on horizontal pipe only
U & D series meters must be mounted on vertical pipe only
The pipe must be completely full of water at all times
See the minimum straight length of pipe requirement chart above
The meter can accurately measure flow from one direction only
U-series meters measure upward flows only
D-series meters measure downward flows only

Brand: Blue White Industries
