Home CaliMar® Platinum Series Salt Chlorine Generator for Inground Pools | Up to 40,000 Gallons | 5-Year Warranty | CMARSSG40-5Y | 52000-141-011
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

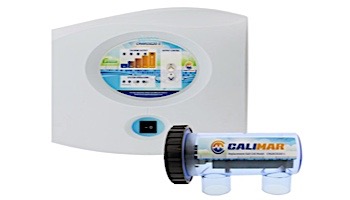

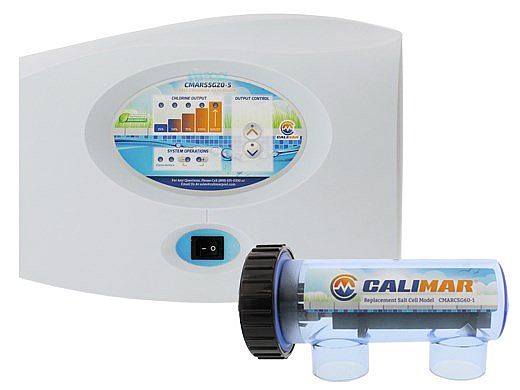

CaliMar® Platinum Series Salt Chlorine Generator for Inground Pools | Up to 40,000 Gallons | 5-Year Warranty | CMARSSG40-5Y | 52000-141-011

CaliMar® Platinum Series Salt Chlorine Generator for Inground Pools | Up to 40,000 Gallons | 5-Year Warranty | CMARSSG40-5Y | 52000-141-011
This item has been discontinued.

Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Produces up to 1.35 pounds of free chlorine per day to maintain residential pools up to 40K gallons
  • Affordable High Performance Salt System
  • Simple Design for Ease of Use; One Touch Control Panel
  • Clear Cell Housing for Ease of Inspection
The CaliMar Platinum Series salt chlorine generators have the greatest chlorine output and longest warranty in the industry. This has only come about by CaliMar working closely with the best salt chlorine generator on the market to bring about the most user friendly, workhorse of a salt chlorinator.
The history of the CaliMar Platinum is rooted in the commercial salt chlorination segment of the swimming pool industry. Using revolutionary design and re-engineered components the CaliMar Platinum salt chlorinator was developed for a lower price point, stronger warranty and better, more reliable chlorine output. After all, reliably knowing your pool is safely chlorinated with natural chlorine is peace of mind.
How the Platinum Chlorinator Works:
Common salt (sodium chloride) is made up of two elements, sodium and chloride. When the CaliMar Platinum is installed, a measured quantity of salt is dissolved in the pool water to create a mild saline solution. As part of the daily filtration cycle, the pool water is passed through the electrolytic cell to produce chlorine, which is instantly dissolved into the water. The chlorine generator also produces ozone and hydrogen in the cell as by-products.
In simple, non-technical terms, the chlorine instantly starts to destroy bacteria, viruses and algae, after doing this it reverts back into dissolved salt. This cycle continues as new chlorine is produced from the salt water in the electrolytic cell, sanitizing the pool and changing once more back into dissolved salt. Every day, when the CaliMar Platinum system and the filtration system are switched on, dust and debris are trapped by the filter and the chlorinator sanitizes the water to make it safe and sparkling clean
Salt Requirements: The CaliMar Platinum is engineered to operate in a broad salt range with a minimum of 3,000 PPM; a salt residual of 4,000 to 4,500 PPM is recommended at all times for peak efficiency and best results. The CaliMar Platinum can also handle special application salt levels of up to 35,000 PPM without any adverse effects to the unit.
NOTE: High salt levels above 8,000 PPM may cause corrosion problems with metallic fixtures, light rings, ladders and handrails. We recommend the use of a pool salt, which can be purchased at pool stores and most hardware outlets. Granular salt, table salt, solar salt or water conditioner pellets can also be used but will have different dissolve rates; the salt you use should contain a minimum purity of 99% sodium chloride. Do not use salt that contains iodine or anti-caking agents like YPS, which can cause some discoloration of fittings and pool surface finishes. NOTE: Do not use rock salt due to its high levels of impurities.

Pool Size
40,000 Gallons
Pool Type
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 12 answers
Can be connected to 110v?
JUAN J on Mar 15, 2018
BEST ANSWER: yes. its very easy just open the case and change the cables to the other position ,explained in the instructions.
Is it better to buy the 60000 gallon salt generator versus the 20000 gallon?
A shopper on Apr 26, 2022
BEST ANSWER: I would say yes …because the capacity of 60,000 producing clorox is higher than 20,000 wich means less % running the cell and will last longer ..if i have a 25 ,000 gallon pool i will buy the 60 …iif i have 15 i will buy 40 iif i have no more than 10,000 gallon i will buy the 20…
I noticed there are no unions or threading like others. What unions should one use?
Kigwana C on May 11, 2020
BEST ANSWER: Hi Kigwana. If you’re referring to how to attach the clear Cell Housing onto the PVC risers, they’re designed to be glued into place using PVC cement, rather than screwed on. (There may be screw-on housings you could buy separately, but the housing that comes with the system is designed to be glued.). You can see the description of this by scrolling to the bottom of the website, and clicking on “Resources” and “Product Manuals” below that . The next page will show you a list of manufacturers, but you won’t see the Calimar icon. Instead, choose “Click here” (in blue) at the top and you’ll be taken to an alphabetical list. Under “C” you’ll find Calimar. Then select the product you’re interested in to find the installation manual with details. You could also call the toll free number and ask any questions you have. The reps have always been very helpful when I’ve had to call. I’m an inexperienced homeowner, not an installer, but I found the installation process to be very simple. We’ve had our Calimar now for about a year, and like it very much. Hope that helps, Kigwana.
Can the control center be mounted outdoors? Does it have an ingress rating?
A shopper on May 29, 2021
BEST ANSWER: Yes it is rated for outdoor mounting. Don’t know about an exact rating, but I can tell you mine has been outside for 3 years trouble free. You might consider shading it just to prevent plastic fading, like anything…
can you switch 20 and 40 models on calmar systems?
A shopper on Mar 22, 2022
BEST ANSWER: You can switch from 20 to 40 if you switch the cell and the control center to 40. I did and the 40 was much more efficient.
Can this salt water clorinator be used on above ground pools?
A shopper on Oct 22, 2021
BEST ANSWER: Yes. Any of these can if you are willing to make some minor adaptations with pvc, etc. not a big deal.
3.7 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Buy it already!!
Being a pool professional, I can provide my customers with a great quality salt system that is not to hard on the wallet. Easy to clean , easy to maintain far less complications than its competitors. This salt system is the only one I buy after installing thousands of every brand available.
September 1, 2019
over 2 years ago
Rated 5 out of 5
Easy to install and use
We’ve owned our CaliMar for about a year, and like its ease of operation. The controls are simple to understand and use. We installed it ourselves, and the process was pretty straight-forward and quick.
May 12, 2020
over 3 years ago
Rated 1 out of 5
Worked 3 weeks
Started smoking and quit working after 3 weeks. My last one last one which was another brand lasted several years.
May 14, 2022
7 months ago
Above Ground Pools
Saltwater chlorination systems void the warranty on all CaliMar above ground pools.
  • CaliMar Above Ground Pools: 8-Year Full Warranty + 22-Year Pro-Rated Warranty
  • CaliMar Above Ground Pool Filter Systems: 3-Year Limited Warranty
Salt Systems
  • CaliMar Platinum Series Salt Chlorine Generator Systems: 5-Year Pro-Rated Warranty
  • CaliMar Titanium Edition Salt Chlorine Generator Systems: 7-Year Limited Warranty
  • CaliMar CMARSHA Series Salt Chlorine Generator Systems: 2-Year Full Warranty + 1-Year 80% Pro-Rated
  • CaliMar Clear CMARHY Series Replacement Salt Cells for Hayward AquaRite Systems: 3-Year Limited Warranty
  • CaliMar CMARCHA Series Replacement Salt Cells for Hayward AquaRite Systems:
    • -1Y part numbers: 1-Year Warranty
      • When used with AquaLogic or ProLogic warranty is shortened to 6-Months
    • -2Y part numbers: 2-Year Warranty
      • When used with AquaLogic or ProLogic warranty is shortened to 1-Year
  • CaliMar CMARCCF Series Replacement Salt Cells for CaliMar Systems: 2-Year Full Warranty + 1-Year 80% Pro-Rated
  • CaliMar Replacement Salt Cells for Ecomatic ESC Systems: 1-Year Limited Warranty
  • CaliMar Replacement Salt Cells for AutoPilot Systems: 2-Year Limited Warranty
  • CaliMar Replacement Electrodes for CompuPool CPSC Systems: 1-Year Limited Warranty
Automatic Cleaners
  • CaliMar Goblin Robotic Pool Cleaner: 4-Year Limited Warranty
  • CaliMar Variable Speed Pumps: 1-Year Limited Warranty
