For the Best, Easiest & Most Enjoyable Pool and Spa Experience
The system produces hydroxyl radicals that destroy organic materials and recreational water illnesses, including Cryptosporidium parvum. Clear Comfort's advanced oxidation process creates disinfectant molecules hydroxyls that eliminate organic materials, bacteria, viruses and protozoan cysts, including chlorine-resistant Cryptosporidium. Additionally, hydroxyls destroy harmful disinfection byproducts created by chlorine sanitation. The system is chlorine-compatible and offers continuous residual sanitation. The system can work with the lowest permitted chlorine levels to provide powerful disinfection without chlorine's negative side effects. Outperforms UV, ozone, salt chlorinators and other legacy systems
Features
- 90-day money-back guarantee
- Simple Venturi installation
- Automation-ready integration
- Compatible with existing equipment
- Liters per minute: CCW300A: 12-14 LPM | CCW300: 23-28 LPM
- Standard cubic feet per hour: CCW300A: 25-30 SCFH | CCW300: 50-60 SCFH
- Equipment room grade NEMA 3R enclosure
- Operating voltage: 120V or 240V
- Certifications: ANSI/NSF 50 | UL 1563 | EPA Section 7 FIFRA Act
Installation & Operation

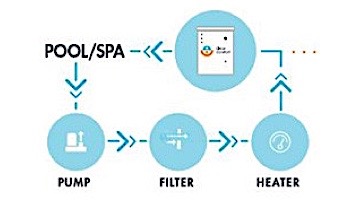

- Simple, low impact venturi installation
- Self regulating

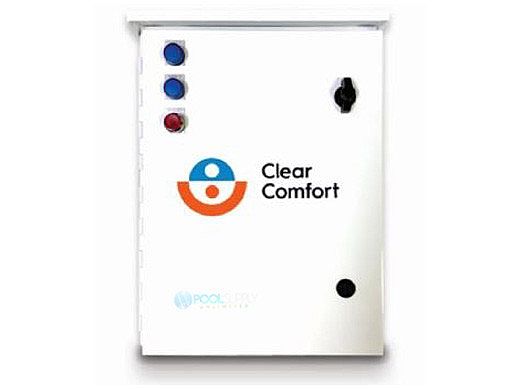

- Equipment room grade NEMA 3R enclosure
- LED operation indicator lights
Ongoing Benefits
- Low power consumption and operating costs
- Reduced chlorine use and costs by 30% to 50%
- Decreased chemical handling
- Proven to destroy over 99.99% of Cryptosporidium parvum
- No downtime for annual maintenance
Patron & Customer Benefits
- Better water, less chemicals
- Lower chemical costs
- Clean, clear water without irritation or allergic reactions
- Destroys 90%+ of disinfection byproducts
- Reduces or eliminates chemical odor
- Safe for pregnant women and chlorine sensitive patrons
Hydroxyl-based disinfection
Clear Comfort's advanced oxidation process creates disinfectant molecules - hydroxyls - that eliminate organic materials, bacteria, viruses and protozoan cysts, including chlorine-resistant Cryptosporidium. Additionally, hydroxyls destroy harmful disinfection byproducts created by chlorine sanitation.
Works alongside chlorine
The system is chlorine-compatible and offers continuous residual sanitation. The system can work with the lowest permitted chlorine levels to provide powerful disinfection without chlorine's negative side effects.
System Details
|
CCW100 |
CC300A |
CCW300 |
CCW500 |
Water Capability |
Up to 40,000 gallons |
<125,000 gallons |
<250,000 gallons |
<1,000,000 gallons |
Max. Flow Rate |
90 GPM |
350 GPM |
700 GPM |
2,000 GPM |
Injection Method |
Venturi |
Venturi |
Venturi |
Venturi |
Operating Voltage |
110V or 220V |
120V or 240V |
120V or 240V |
120V or 240V |
Power Consumption |
10 Watts |
20 Watts |
40 Watts |
120 Watts |
Dimensions |
H: 12" W: 8" D: 3" |
H: 20" W: 16" D: 8" |
H: 20" W: 16" D: 8" |
H: 40" W: 24" D: 10"* |
Installation Clearance |
H: 17" W: 20" D: 20" |
H: 25" W: 30" D: 25" |
H: 25" W: 30" D: 25" |
H: 47" W: 36" D: 27" |
*Total width side compartments included.
