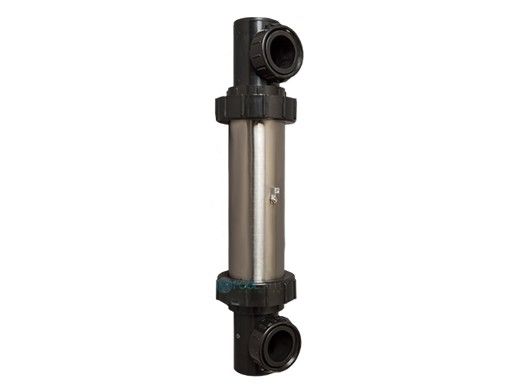

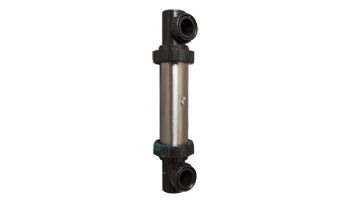

Meet the Delta UV System for Residential Spas
UV disinfection systems designed for spas and hot tubs The EA series offers a safer spa experience for your family, friends and the environment. UV light helps to inactivate algae, viruses and microorganisms without adding additional chemicals. Installing a UV system can reduce chemical usage and breaks down chlorine by-products called chloramines. Chloramine exposure commonly leads to stinging (red) eyes, skin irritations, asthma and allergies.
Sizing your UV system is important and based on the flowrate. Models in this series range from 16 - 47 gallons per minute. The EA series can be adapted to most existing spas.
EA Series |
Model |
EA 4H 15 |
Max. Flow Rate GPM |
33 |
Dose mJ per cm2 at Recommended Flow Rate |
30mJ/cm2 |
UV Lamp Power |
55W |
Diameter of Chamber |
4" |
Total Height |
27" |
Inlet/Outlet Diameter |
2" |
Product Line Specifications: |
Power Input |
120/240v 50/60hz |
Housing |
3"-4" PVC or stainless |
Ballast |
Electronic, plug and play or hardwired |
Lamp |
High output - low pressure (approx. 16,000 hrs.) |
Pressure Switch |
No |
Indoor/Outdoor Installation |
Yes |
Plumbing Options |
3/4" barbed tailed piece (circ
systems) |
