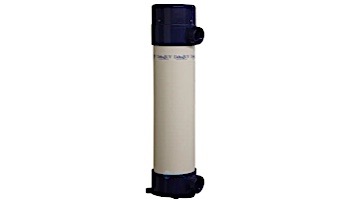

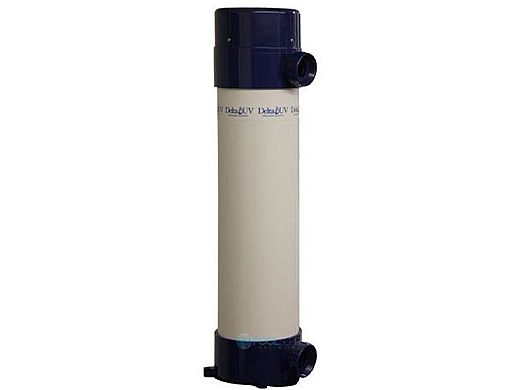

Delta Ultraviolet UV Sanitizer E Series | E-80 | 80 GPM | Plastic | 35-08544 38-08544 | 1000-2285

$672.16
Delta Ultraviolet UV Sanitizer E Series | E-80 | 80 GPM | Plastic | 35-08544 38-08544 | 1000-2285
Ultraviolet Water Sanitation for Residential Pools and Spas

E Series offer an incomparable and safer pool experience for your family and friends… Silky, smooth, odorless and salt free. The water circulates through our Delta UV sanitizer that uses the type C ultraviolet rays to completely purify water deactivating all the dangerous micro-organisms resulting in the cleanest and purest water possible for your pool. As small residual of chemicals are used in order to destroy any micro-organism that do not find their way into the UV sanitizer.

For Cleaner, Healthier Pool Environment
  • Drastically reduces chemical use by 50%
  • Sterilizes micro-organisms that chlorine and salt systems can't
  • No nasty chlorine smell
  • No more red eyes, dry skin or damaged hair
  • Easier pool maintenance, simple, reliable
  • Prolongs pool & equipment life
  • Environmentally friendly
  • Compatible with all types of coatings and filters
  • Compatible with all pool chemical treatments
  • A treatment that can be automated with an existing chlorinator
The UV Concept

The sun emits invisible light - ultraviolet light. Through leading edge technology, this natural phenomenon is reproduced inside the sanitizers of the Delta UV product range using powerful UV-C ray lamps. At 254 nanometers, the optimum wavelength for destroying micro-organisms (viruses, bacteria, algae, yeast, mold, etc.), Delta UV-C rays penetrate and disrupt their DNA, permanently deactivating germ cell metabolism so they cannot reproduce.

Simplicity and Health

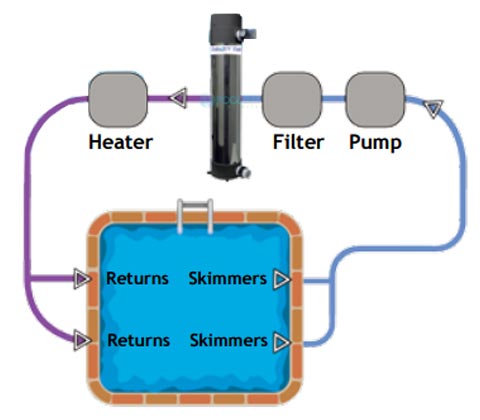

The effectiveness of type C ultraviolet rays as a means of sanitization has been known for more than a century. It has been used in various applications such as for drinking water purification, aquaculture, fish farming, and in hospitals and the pharmaceutical industry. After filtration, water circulates through the Delta UV Sanitizer for complete disinfection - bacteria, viruses and algae are completely deactivated without side effects or dangerous by-products. This process results in the cleanest and purest water possible for your pool, and drastically reduces your need for chemical products. As it is not possible to build a pool where 100% of the water passes through a filter, you will still need to maintain a small residual of chemicals in your pool in order to destroy any micro-organisms that do not find their way in to the UV sanitizer.


E&ES Product Line Specifications
  • Power Input: 120/240V/50/60hz
  • Housing:Housing: E Series-special 8’’ PVC Plastic
  • Ballast: Electronic
  • Lamp: High Output – Low Pressure (16,000 hrs.)
  • Dry Fire Protection: Yes
  • Pressure Gauge: Yes
  • Indoor/Outdoor Installation: Yes
  • Limited Warranty: 3 Years ES-Series / 2 Years E-Series (1 year bulb)
  • Plumbing options : 2’’ PVC Unions
  E SERIES
E-31 E-46 E-57 E-80 E-110
SANITIZER
Material PVC Plastic
Maximum pressure in Use 40psi 40psi 40psi 40psi 40psi
Max. Flow 31gpm 46gpm 57gpm 80gpm 110gpm
Min. Flow 20gpm 31gpm 46gpm 57gpm 80gpm
Diameter 9 in. 9 in. 9 in. 9 in. 9 in.
Height 18 in. 25 in. 28 in. 39 in. 46 in.
Inlet / Outlet 2 in. 2 in. 2 in. 2 in. 2 in.
Power supply 120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
Protection index IP 54 NEMA 3 IP 54 NEMA 3 IP 54 NEMA 3 IP 54 NEMA 3 IP 54 NEMA 3
  UV LAMP
Number of lamp 1 1 1 1 1
Power 30W 45W 55W 80W 90W
Performance at the
recommended flows
30 mJ/cm² 30 mJ/cm² 30 mJ/cm² 30 mJ/cm² 30 mJ/cm²


Brand: Delta UV
