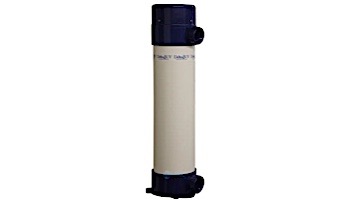

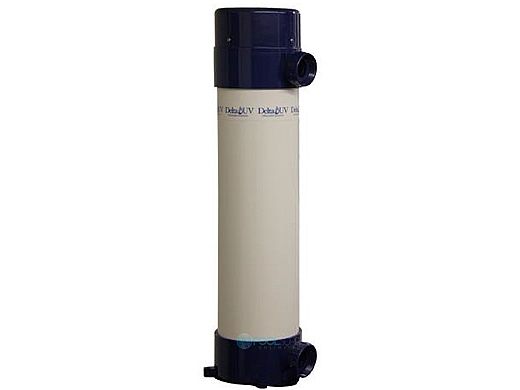

Delta Ultraviolet UV Sanitizer E Series | E-31 | 31 GPM | Plastic | 35-08540 38-08540

Name: Delta Ultraviolet UV Sanitizer E Series | E-31 | 31 GPM | Plastic | 35-08540 38-08540
Brand: Delta UV
SKU: 158190
Availability: InStock

This item has been discontinued.

Ultraviolet Water Sanitation for Residential Pools and Spas

E Series offer an incomparable and safer pool experience for your family and friends… Silky, smooth, odorless and salt free. The water circulates through our Delta UV sanitizer that uses the type C ultraviolet rays to completely purify water deactivating all the dangerous micro-organisms resulting in the cleanest and purest water possible for your pool. As small residual of chemicals are used in order to destroy any micro-organism that do not find their way into the UV sanitizer.

For Cleaner, Healthier Pool Environment

Drastically reduces chemical use by 50%
Sterilizes micro-organisms that chlorine and salt systems can't
No nasty chlorine smell
No more red eyes, dry skin or damaged hair
Easier pool maintenance, simple, reliable
Prolongs pool & equipment life
Environmentally friendly
Compatible with all types of coatings and filters
Compatible with all pool chemical treatments
A treatment that can be automated with an existing chlorinator

The UV Concept

The sun emits invisible light - ultraviolet light. Through leading edge technology, this natural phenomenon is reproduced inside the sanitizers of the Delta UV product range using powerful UV-C ray lamps. At 254 nanometers, the optimum wavelength for destroying micro-organisms (viruses, bacteria, algae, yeast, mold, etc.), Delta UV-C rays penetrate and disrupt their DNA, permanently deactivating germ cell metabolism so they cannot reproduce.

Simplicity and Health

The effectiveness of type C ultraviolet rays as a means of sanitization has been known for more than a century. It has been used in various applications such as for drinking water purification, aquaculture, fish farming, and in hospitals and the pharmaceutical industry. After filtration, water circulates through the Delta UV Sanitizer for complete disinfection - bacteria, viruses and algae are completely deactivated without side effects or dangerous by-products. This process results in the cleanest and purest water possible for your pool, and drastically reduces your need for chemical products. As it is not possible to build a pool where 100% of the water passes through a filter, you will still need to maintain a small residual of chemicals in your pool in order to destroy any micro-organisms that do not find their way in to the UV sanitizer.

E&ES Product Line Specifications

Power Input: 120/240V/50/60hz
Housing:Housing: E Series-special 8’’ PVC Plastic
Ballast: Electronic
Lamp: High Output – Low Pressure (16,000 hrs.)
Dry Fire Protection: Yes
Pressure Gauge: Yes
Indoor/Outdoor Installation: Yes
Limited Warranty: 3 Years ES-Series / 2 Years E-Series (1 year bulb)
Plumbing options : 2’’ PVC Unions

	E SERIES
	E-31	E-46	E-57	E-80	E-110
	SANITIZER
Material	PVC Plastic
Maximum pressure in Use	40psi	40psi	40psi	40psi	40psi
Max. Flow	31gpm	46gpm	57gpm	80gpm	110gpm
Min. Flow	20gpm	31gpm	46gpm	57gpm	80gpm
Diameter	9 in.	9 in.	9 in.	9 in.	9 in.
Height	18 in.	25 in.	28 in.	39 in.	46 in.
Inlet / Outlet	2 in.	2 in.	2 in.	2 in.	2 in.
Power supply	120V/240V 50-60Hz	120V/240V 50-60Hz	120V/240V 50-60Hz	120V/240V 50-60Hz	120V/240V 50-60Hz
Protection index	IP 54 NEMA 3	IP 54 NEMA 3	IP 54 NEMA 3	IP 54 NEMA 3	IP 54 NEMA 3
	UV LAMP
Number of lamp	1	1	1	1	1
Power	30W	45W	55W	80W	90W
Performance at the recommended flows	30 mJ/cm²	30 mJ/cm²	30 mJ/cm²	30 mJ/cm²	30 mJ/cm²

Brand: Delta UV

REVIEWS

Q&A

PARTS

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 1 question Browse 1 question and 1 answer

I have the Delta Evoqua E Series. The top is melting and caved in from the internal heat of the UV lamp. Anyone else have this problem? Is there a chance it will ignite and create a fire?

Jerry W on Aug 19, 2020

BEST ANSWER: Hi, I have the same problem. Any luck in solving it?

Reply(1)
Inaccurate
Joboub on May 24, 2021
