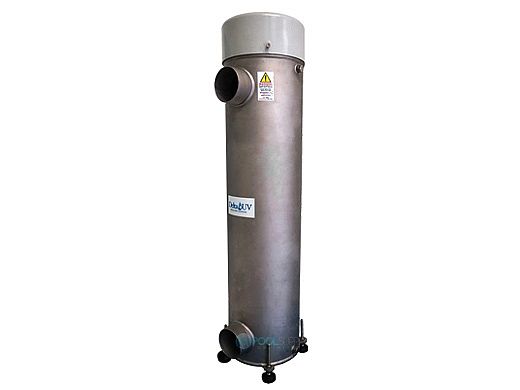

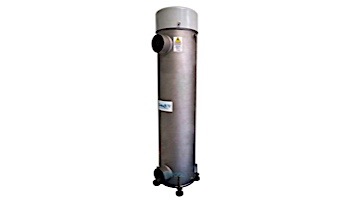

Home Delta Ultraviolet ELP Series Low Pressure HO Sanitizer Commercial Pools & Spas | Stainless Steel | 208/240V Single Phase | ELP28HO
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Delta Ultraviolet ELP Series Low Pressure HO Sanitizer Commercial Pools & Spas | Stainless Steel | 208/240V Single Phase | ELP28HO

Delta Ultraviolet ELP Series Low Pressure HO Sanitizer Commercial Pools & Spas | Stainless Steel | 208/240V Single Phase | ELP28HO
$8,287.45

Quantity:
Platinum Preferred Manufacturer
  • Ideal for low flow rates including Splash Parks, Aquatic facilities, Fountains, Fitness and YMCA Clubs
  • Water treatment max flow rate 79gpm
  • Average lamp life up to 13,000 operating hours (depending on on/off cycles)
  • Single base lamps and patented water-proofing system to facilitate maintenance
  • NEMA rating: NEMA 2, UV unit can be vertical or horizontal installed
  • Pays for itself in 9 to 36 months
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
OVERVIEW
Get Cleaner, Healthier water with Clean Light Technology

 The ELP series HO propose a water treatment flow rate from 50gpm up to 400gpm. The ELP Series eradicates Cryptosporidium, Giardia and other harmful pool and spa water contaminants and chlorine by-products

Commercial pools are regulated under strict testing protocols. Local and National news frequently report on pool closures associated with outbreaks of «Crypto» and Giardia contamination. Delta UV provides the most advanced technology available for the eradication of these bacteria with the added benefit of Chloramine removal for improved air quality. As the World leader in ultraviolet sanitation solutions, Delta UV offers a full product line of NSF-50 certified products for your aquatic facility.

Features
  • Destroys organic matter and eliminates the formation of dangerous chlorine by-products (chloramines) that commonly lead to red, stinging eyes, skin irritations, asthma and allergies.
  • The ELP range delivers 60mJ at the end of the lamp’s life assuring optimum dechloramination efficiencies
  • Average lamp life up to 16,000 operating hours (depending on on/off cycles)
  • Electronic ballasts providing maximum UV lamp efficiency and integrated control
  • Optimized performance levels with UV-C high intensity lamps
  • Single base lamps and patented water-proofing system to facilitate maintenance
  • Sanitizers made from HDPE providing high resistance to corrosion
With the ELP UV system
  • The ELP range delivers 60mJ/cm2 at the end of the lamp’s life assuring optimum dechloramination efficiencies
  • Average lamp life up to 13,000 operating hours (depending on on/off cycles)
  • Easy to install and maintain
  • Electronic ballasts providing maximum UV lamp efficiency and integrated control
  • Optimized performance levels with UV-C high intensity lamps
  • Single base lamps and patented water-proofing system to facilitate maintenance
  • UV chamber made from micro-bitted and passivated 316 L stainless steel providing high resistance to corrosion
  • Pays for itself in 9 to 36 months
Specifications
  • Power: 191 W
  • Power Supply: 120V or 208/240v single phase
  • # Lamps: 2
  • Cabinet Weight: 18
  • Max Flow Rate (GPM): 79
  • Inlet/outlet size: Flanges 3"
  • Length and diameter or reactor:  37 5/8"
Construction
  • Cabinet in polycarbonate
  • Electronic ballasts
  • Cooling fans
  • NEMA rating: NEMA 2
Sensors
  • UV sensor with MILLENIUM III
  • Reactor temperature sensor


Brand: Delta UV
SPECIFICATIONS
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
DELTA UV LIMITED WARRANTY
2 Years

Delta Ultraviolet Corporation warrants to every original Purchaser of Delta UV’s Series Ultraviolet Unit, that the product will be free from defects, as defined herein, for a period of two (2) years - (E/ES-Series). If at any time during the Limited Warranty period, any defect, as defined herein, prevents the product from performing correctly in an application for which it was designed, Delta UV will repair or replace the product (at Delta UV’s option) as outlined herein:

COVERED WARRANTY ITEMS:
This Limited Warranty DOES cover the UV unit, its components, and defects thereof against:
  • Manufacturing Defects
  • Material Defects – Ballast, Pressure Gauge, Pressure Switch (1 year)
  • Housing Corrosion Causing Leakage (ES Series)
  • Plastic Component Degradation
  • Bulb failure during 1st year (Pro Rated)
NON-COVERED WARRANTY ITEMS:
This Limited Warranty DOES NOT cover the following UV unit defects:
  • Failure Of Any Covered Condition When Caused By Any Of The Following:
  • Metal Corrosion Due To Salt Water Use
  • Mechanical Abuse
  • Glass Component Breakage
  • Improper Installation
  • Bulb Failure After One Year
  • Acts of War or God
  • Operation At Pressures Greater Than 40 PSI (3 Bar)
  • Freeze Damage
  • Any Failure Not Indicated As “Covered Warranty Item” Herein
  • Improper Operating Voltage
Note 1: During the duration of this Limited Warranty, should any failure occur, the unit should be inspected at the site to determine the cause of failure, and if that failure is shown to be a covered item, the Original End User (User) must request a written Return Goods Authorization (RGA) from Delta UV, prior to any product return. Any returned unit is to be accompanied by Delta UV’s RGA and is to be returned freight prepaid to Delta UV for Limited Warranty evaluation. The User is responsible for any freight damage associated with such return. Unit failures, or components thereof, found to be covered under this Limited Warranty will be repaired or replaced (at Delta UV’s option) without cost to the User and will be returned to the User via UPS Surface, at the User’s expense. Delta UV shall be the sole judge in determining the cause of failure of any UV unit. Units arriving in broken condition will not be warranted. The term “Original End User” (User) shall mean the person or company that was in possession of the physical location where the UV unit was originally installed, at the time of first installation, as evidenced by an original invoice from the selling company to the User at the location where the unit is to be returned. A photo copy of said original invoice must accompany the UV unit RGA paperwork. UV units received unaccompanied by the required documentation will not be accepted by Delta UV for Warranty evaluation and will be returned to the User in the same condition as received, freight collect (COD) if the User fails to provide the required documentation within ten (10) days from date of notification of missing documentation from Delta UV. Any unit returned to Delta UV COD or freight collect will be rejected from the freight carrier.

Note 2: This Warranty is Limited in that it does not cover any monetary reimbursement for freight charges, for removal and/or installation labor, or any other incurred costs by any other person(s) or firm(s), including (but not limited to) any consequential damage or loss of use that might be claimed. The Limited Warranty period shall commence upon the date of sale to the User, but in all cases no later than one hundred twenty (120) days after the date of manufacture of the UV unit, as shown on the Delta UV date code located on the product identification label, whichever occurs first. UV units received with factory identification missing, mutilated or altered, or units received containing components not supplied by Delta UV or modified in any way, will not be warranted under any circumstances.

OTHER RIGHTS - This Limited Warranty supersedes any and all previous Limited Warranties for this product, gives you specific legal rights, and you may have other rights which vary from state to state.

DELTA ULTRAVIOLET CORPORATION
CORPORATE HEADQUARTERS
1535 West Rosecrans Ave
Gardena, CA 90249
Phone 310-323-6400
Fax 310-323-6403
