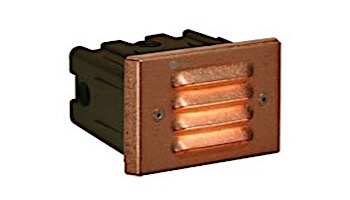

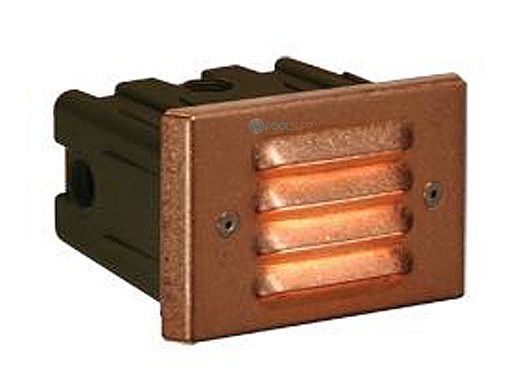

The patent pending CP is engineered to bring light to to walkways, stairways, and decks. In addition, the CP is helpful for lighting other areas with high foot traffic hazards that do not have an adjacent planter area for path lighting, or trees and trellises from which to down light.



Incorporated into the design is the LevelX® feature. The LevelX® assures the lighting installer that the faceplates of these permanently mounted fixtures will remain perfectly level upon completion of the installation. Many step and wall lights on the market today are designed so that if the mounting box is installed out-of-level, the faceplate, once installed, will also be noticeably out-of level.

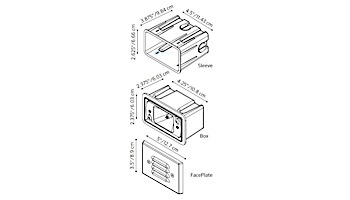

Some of the features of the CP include: Sleeve is permanently mounted in concrete or wood wall combined with multiple threaded knockouts, easy-to-remove box for unforeseen future problems prevents having to chip away at the wall for repairs, and corrosion-free stainless steel inserts.

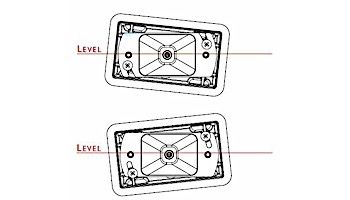

The Patent Pending LevelX® system allows the composite sleeve to be up to 3 8" out of level, in either direction, while still allowing the faceplate to be laser level!



The secret: The trim attaches to the adjustablereflector assembly " not the composite sleeve or body. Heavy foam gasket keeps light spill to a minimum.
