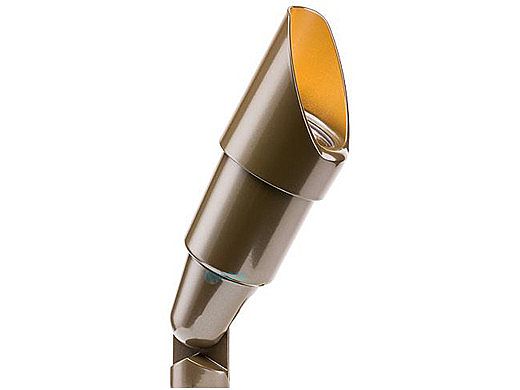

RS: Up Light Long Shield
The Core of the FX Up Light Family. The CM, SI and RS, allows designers to use different lamps to create custom effects while maintaining consistency in style. With knowledge of the science and art of lighting, a professional designer can choose a lamp source to suit the desired effect or emotional response.
The RS is a rugged micro luminaire that provides the power and control of the halogen MR-16 lamp family. This precision lighting instrument is a fine example of engineering for simplicity and reliability. The RS is constructed without compromise using aerospace-grade alloys and silicone seals.
Quick Facts
- Die-cast zinc/aluminum alloy
- MR-16 lamp type
- ProAim adjustability
- TGIC powder coat finish
- Compatible with Luxor technology
- Input voltage: 10-15V
Materials: |
Zinc/aluminum alloy housing, shroud, and knuckle with stainless steel hardware |
Socket: |
MR16 GU5.3 socket with retaining clips |
Wiring: |
18 AWG SPT-1W 105o C 300V |
Power: |
Input 10-15VAC/VDC 50/60Hz. Remote transformer required (sold separately) |
Lamp Options: |
No Lamp, LED lamp, ZD LED lamp, Halogen |
