Pool FLWP Series |
Spa FLWS Series |
|||||
---|---|---|---|---|---|---|

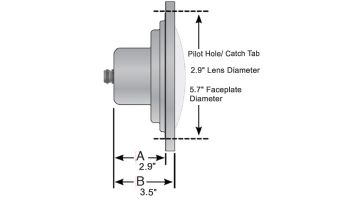

A | 3.4" | 2.9" | ||||
B | 3.9" | 3.5" | ||||
Lens Diameter | 6.0" | 2.9" | ||||
Faceplate Diameter | 10.5" | 5.7" | ||||
Pilot Hole/Catch Tab | ||||||
Standard Fixture Version | 9.5" Center-to-Center | |||||
Swimquip Fixture Version* | 8" Center-to-Center |
Model# | FLWP-__-3 | FLWP-__-5 | FLWS | ||||
---|---|---|---|---|---|---|---|
Lumens | 2400 Lumens | 3900 Lumens | 500 Lumens | ||||
Wattage | 39W | 58W | 13W | ||||
LED Color | Cool White 6500K | ||||||
Incandscent Equivalent | 300W | 500W | 100W |
Model FLCWP Pool Series |
---|
Pentair®: 620004, 78210400, 78210500, 78210600, 78210700, 78232400, 78232500, 79206700 Jandy®: PLNICLRG, SSNICLRG1R, SSNICLRG1S, PLNICVFLRG Sta-Rite® SwimQuip® SQ Faceplate Version Only |
Model FLCWS Spa Series |
Pentair®: 78244200, 78244300, 78243200, 78243300, 79206600 Jandy®: PLNICSM, SSNICSM1R, SSNICSM1S Hayward®: SP0606C, SP0610U |
