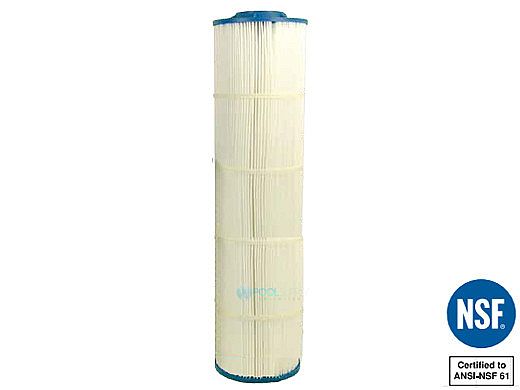

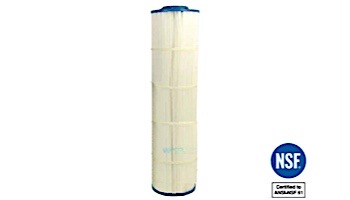

Cleanable/Reusable in most filtration applications and micron ratings. This High flow capacity cartridge will lower overall operating cost while reduce waste disposal and give longer filter runs for fewer change-outs, increase contaminant removal and is operator friendly.



• Fewer cartridges for fewer change-outs and lower maintenance cost
• Pleated Polyester-Plus™ filter media provides higher flow rates and lower initial pressure drop
• Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
• End cap, center tube and media are thermally bonded as one integral component for added strength
• Offered in three sizes (40, 90 and 170) and eight micron ratings (0.35, 1, 5, 10, 20, 50, 100 and 150) to meet all your high flow requirements Applications

• Electropolished 304 stainless steel
• Standpipe - CPVC
• Temperature - 140°F (60°C) max. Up to 250°F (121°C) with optional stainless steel standpipe and high temperature cartridges installed
• Wing nuts - brass
• Rim gaskets - EPDM (Buna-N, Viton available)
• BSTP optional
• Gauge sample ports (1/4”), inlet and outlet
• Pressure - 150 psi (10 bar) max.

• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration
• Desalination Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine/Aquatic Filtration
• Industrial Coolant Filtration
