High Flow Performance Lower Operation Cost with Hurricane® Cartridges

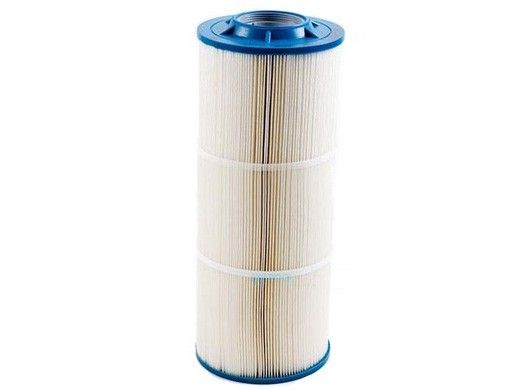

Harmsco® HCP Premium Hurricane® Polyester Filter Cartridges have the maximum surface area of any cartridge and are designed for the Harmsco Hurricane and Water Better Housings. They offer high flow performance at much lower operating costs. Harmsco HCP filters offer longer run times with fewer change outs for increased contaminant removal and are easy to change when required. End cap, center tube, and media are thermally bonded as one integral component for added strength. Harmsco filters are made of FDA approved materials and are NSF 61 certified.
Features
- Fewer cartridges for fewer change-outs and lower maintenance cost
- Pleated Polyester-Plus™ filter media provides higher flow rates and lower initial pressure drop
- Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
- End cap, center tube and media are thermally bonded as one integral component for added strength
Specifications:
- Nominal micron rating: 20
- Surface Area: 90 Sq. Ft
- Recommended Flow Rate (GPM): 70
- Max Flow Rate (GPM): 100
- Max Flow Rate (LPM): 378
- Length: 19-1/2"
- Diameter: 7-3/4"
- End Caps: Pliable PVC with sealing surface built-in
- Filter Media: nominal pleated Polyester-Plus™
- Temperature: 140°F (60°C) temperature limit*
- Core: ABS or PVC
* Temperature limits vary and depend on pressure and time under load.
Applications:
- Reverse Osmosis Pre-filtration
- Desalination Pre-filtration
- Industrial Water Filtration
- Cooling Tower Filtration
- Chill Water Loop Filtration
- Food & Beverage Filtration
- Marine/Aquatic Filtration
- Industrial Coolant Filtration
