Lower Operation Cost

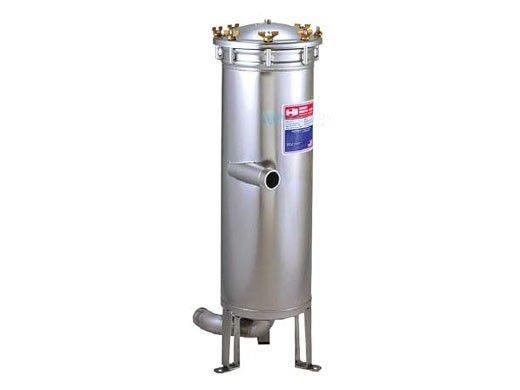

Harmsco HP Hurricane filters provide unsurpassed performance. Our unique design separates dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs.
Features:
- Combination cyclone separator and cartridge filter in a single compact design
- Patented Up-flow design with tangential entry - prevents air entrapment
- Rotational flow "flutters" media pleats - improving loading performance
- CPVC standpipe (standard) - stainless steel optional
- Three technologies in one
- NSF/ANSI Standard 61 Listed
- Largest selection available of cartridge micron ratings and media, including carbon block
- Fail-Safe lid closure, rated for 150 psi
Specifications:
- Electropolished 304 stainless steel
- Standpipe - CPVC Rim gaskets - EPDM (Buna-N, Viton available)
- Pressure - 150 psi (10 bar) max.
- Temperature - 140?F (60?C) max. Up to 250?F
- (121?C) with optional stainless steel standpipe and high temperature cartridges installed
- Wing nuts - brass
- Gauge sample ports (1/4"), inlet and outlet
- BSTP optional
