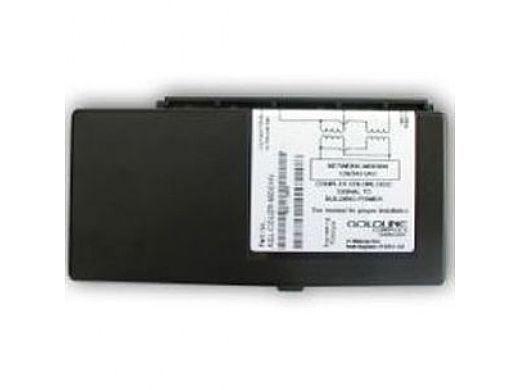

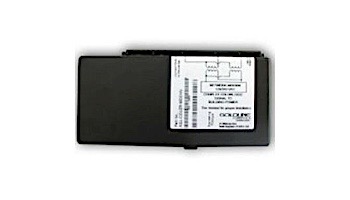

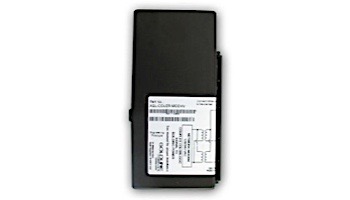

Hayward | ColorLogic LED Communication Module | AQL-COLOR-MODHV

Hayward | ColorLogic LED Communication Module | AQL-COLOR-MODHV Hayward | ColorLogic LED Communication Module | AQL-COLOR-MODHV

Gold Preferred Manufacturer
  • Use with Goldline Controls Pro Logic controls with software version 4.00 or greater
  • Fully Control color, speed, motion and brightness of pre-set light shows
  • Can be used to control up to 32 pool or spa lights simultaneously
  • Only operates with 120V lights
Q & A
The AQL-COLOR-MODHV is compatible with all Goldline Controls Pro Logic PS controls operating with software version 4.00 or greater and whose enclosures provide a cutout for installation. Refer to the Installation section of this manual to verify compatibility with your Pro Logic.
The ColorLogic Network Module will only operate with Generation 4 or later Hayward ColorLogic 120VAC pool/spa light(s).

The ColorLogic Network Module is used with the Pro Logic to fully control the color, speed, motion and brightness of pre-set light shows in a compatible Hayward ColorLogic pool/spa light(s). After installing the ColorLogic Network Module and enabling the function in the Pro Logic, the user can program various parameters to fully customize their pool/spa light(s) operation.
The ColorLogic Network Module can be used to control up to 32 pool or spa lights simultaneously. This method of control features 2 user defined programs; five fixed colors and eleven color-changing shows. All fixed colors and shows can be modified or changed. The factory set colors and shows are listed in the Program Table below and can also be found on the color laminated card included with the Network Module. A color chart can be found on the same card and will help when programming colors for the ColorLogic lights.

Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
my pool Colorlogic light does not change colors but the spa lights do change colors
Bulb issue or comment board?
A shopper on Oct 7, 2020
