Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO

Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO
$584.63

Quantity:
Shipping Flat Rate Shipping $9.95
Platinum Preferred Manufacturer
Purchase Options

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Goldline | Hayward | Aqua Plus Control | PL-PLUS-20G
Goldline - Hayward - Aqua Plus Control | PL-PLUS-20G
Replacement Parts

Hayward Goldline Wireless Base | AQL2-BASE-RF
Hayward Goldline Wireless Base | AQL2-BASE-RF
Replacement Parts

Hayward Goldline Wireless P-4 Tabletop Remote Control | Black | AQL2-TB-RF-P-4
Hayward Goldline Wireless P-4 Tabletop Remote Control | Black | AQL2-TB-RF-P-4
Replacement Parts

OVERVIEW

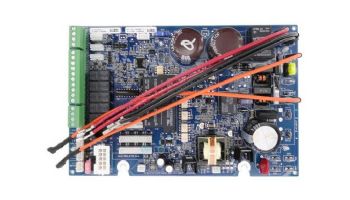

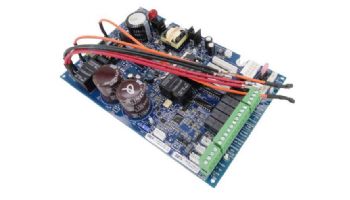

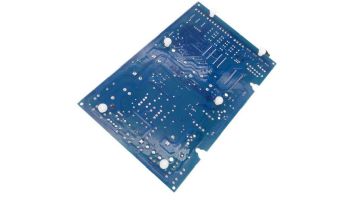

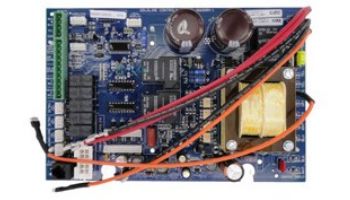

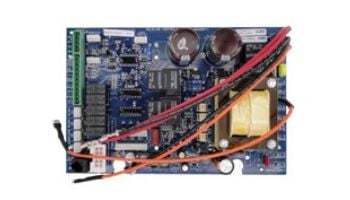

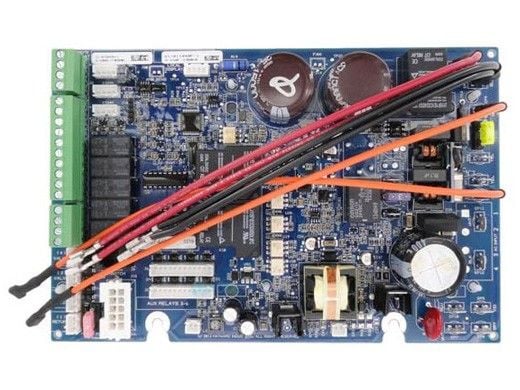

Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO.  Use this newest revision circuit board for ProLogic systems to upgrade your system to be compatible with T-CELL-3 or T-CELL-9 salt cells or to operate the new EcoStar variable speed pumps.  This board is compatible with all date codes.


Brand: HAYWARD
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 10 answers
Can this be used as a replacement board for an AQL-PS-4 on a pool/spa combo setup? [trying to get home wifi connectivity for a v2.66 main board so the pool can be controlled from an android phone for the mother-in-law]. Is there anything else needed beyond the replacement wifi base antenna, new board, and the network bridge?
A shopper on Jul 13, 2020
Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO
Hayward Goldline ProLogic Main PCB Circuit Board | GLX-PCB-PRO
Hayward Goldline Wireless Base | AQL2-BASE-RF
Hayward Goldline Wireless Base | AQL2-BASE-RF
Hayward Goldline Aqua Connect Wireless Home Network Device | AQ-CO-HOMENET
Hayward Goldline Aqua Connect Wireless Home Network Device | AQ-CO-HOMENET
Where can i get a wiring diagram?
Jon S on Jun 2, 2017
BEST ANSWER: I did receive the PCB with a printout of the wiring diagram and basic install instructions. Wires are color coded and the PBC is labeled, so it's not too difficult to follow.
will this be compatible with the goldline aqua plus system?
A shopper on Jun 9, 2021
I am looking for a glx-pcb-pro your descriptions is glx-pcb-main is that the same as the pro?
THOMAS T on Jul 19, 2021
what firmware revision is this board?
A shopper on Jul 1, 2021
BEST ANSWER: 4.46
Is this item (GLX-PCB-PRO) back in stock?
Charles P on Sep 14, 2021
Does this work on the Aquaplus Automator and chlorinator?
Garen N on Aug 8, 2021
BEST ANSWER: This is the main board for the Hayward Aqua plus and the aqua logic control panel
Is this working with T-CELL 15?
Michael A on Jul 27, 2021
BEST ANSWER: I have a T-Cell 15 and it is working in my pool.
does this replace 3L0804-1025287?
Gail M on Apr 3, 2018
BEST ANSWER: Yes
can this work for 3L16057-1004743?
Heather U on May 1, 2019
REVIEWS
4.4 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
1
1
0
0
Rated 5 out of 5
Hayward goldline PCB CIRCUIT BOARD
Saved myself $500 by buying from Pool Suply Unlimited versus quote from my pool company.Got them to install for $85.
Great service,easy to use website and delivered as promised.
I will use this company again.
June 23, 2020
Purchased
1 year ago
Rated 5 out of 5
What a great upgrade
Perfect replacement for my old unit. Fixes the salt generator issue and allows more functionality for chemistry, solar and other features.
August 27, 2021
Purchased
3 months ago
Rated 5 out of 5
Accurate order with fast delivery!
We were frustrated with our local pool supply store, so after a month long wait we ordered online. Had the part in two days. We installed ourselves and are up and running. Our local pool store is still unable to find the correct part and called to say they could have it and install it in sept. (4 months from now). Amazing.
May 31, 2021
Purchased
4 months ago
Rated 4 out of 5
Easy
Had the old AquaLogic system and upgraded the board to convert my system to the ProLogic which allows me to put any size salt cell on my system and I can also control the new colors on the LED lights as well as the different speeds on the new variable speed pump I'm getting next month!
December 9, 2013
Rated 3 out of 5
Good value- wiring was preinstalled wrong
Just a heads-up to others buying this to double check to make sure the wires that are preinstalled are plugged into the correct spots on the PCB. When I received mine, the Red wires were plugged into the "Black" port, Black wires pulled into the "Orange" port, and Orange plugged into the "Yellow" port. So basically had to redo all the wiring that we preinstalled. The part does come with a wiring diagram and the PCB is clearly labeled which ones go where. Just would be nice if the factory could get it right!
July 29, 2021
Purchased
3 months ago
WARRANTY
Hayward Pool Products warranties all items sold over the internet for a period of one year, parts only, no labor, ONLY when purchased from a Hayward Authorized Online Reseller.
  • Salt cell replacements W3T-CELL15, W3T-CELL-9, and W3T-CELL-3 include a three year, parts only warranty, when purchased from a Hayward Authorized Online Reseller.
Pool Supply Unlimited is a Hayward Authorized Online Reseller.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/15/2020. For the most current information and full warranty policy please visit www.hayward-pool.com
