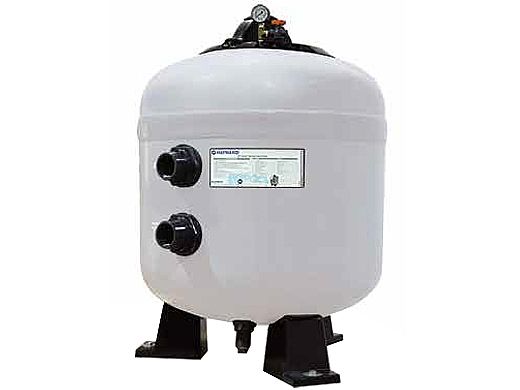

Hayward HCF Series Commercial Fiberglass Sand Filter 30", 2" Bulkhead | HCF302T

Name: Hayward HCF Series Commercial Fiberglass Sand Filter 30", 2" Bulkhead | HCF302T
Brand: Hayward Pool Products
SKU: 158365
Availability: InStock

This item has been discontinued.

Hayward HCF Series Commercial Fiberglass Sand Filter 30", 2" Bulkhead | HCF302T

Next generation, high performance filtration and longer service life

The next generation HCF Series Sand Filters resets the bar for quality and performance in the recreational water market now with a 5-year warranty. New rapid open\close tool-free lid mechanism features an industrial-grade yoke assembly and a massive 12" × 16" manway with two viewing windows to allow for visual inspection while filter is in operation. Non-corrosive glass filled ABS legs all for better serviceability, convenience in media loading and filter inspection. Infusion molded, gel-coated thermoset composite fiberglass structure is complemented with oversized, grid-array laterals to improve filtration and lengthen filter cycle time.

The range has expanded to address the requirements of the renovation/replacement market with the introduction of new 34" models capable of fitting through standard 36" doors.

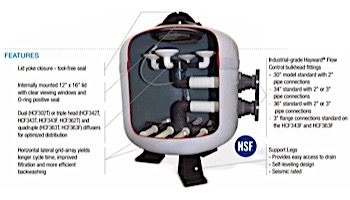

Features

Lid yoke closure - tool-free seal
Internally mounted 12" x 16" lid with clear viewing windows and O-ring positive seal
Dual diffusers for optimized distribution

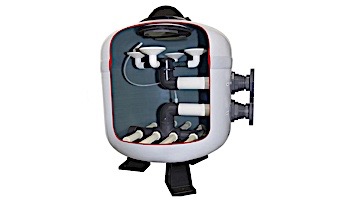

Horizontal lateral grid-array yields longer cycle time, improved filtration and more efficient backwashing
Industrial-grade Hayward® Flow Control bulkhead fittings - 30" model standard with 2" pipe connections
Support Legs
- Provides easy access to drain
- Self-leveling design
- Seismic rated

Specifications

Tool-free, injection-molded, internally mounted 14” x 18” industrial-grade lid and yoke assembly with two viewing windows and O-ring Seal
Commercial-grade, 1-1/2", self cleaning injection-molded, 180° slotted laterals arranged in a grid-array provide superior filtration performance
Industrial-grade, infusion-molded, gel-coated, multi-layer, glass-reinforced, thermoset composite structure
Self leveling, injection-molded support legs are permanently bonded to the tank, suitable for Zone 4 earthquake conditions
Large 12" × 16" top opening for easy media loading and filter inspection
Full 1" bottom media drain including ¾" integral water drain with media screen
New warranty policy 5-year parts, 1-year labor
NSF/ANSI Standard 50 Certified

Technical Specifications And Performance Data

Description	Specifications
Part Number	HCF302T	HCF342T	HCF343T	HCF343F	HCF362T	HCF363T	HCF363F
Size	30"	34"	34"	34"	36"	36"	36"
Filtration Area Ft²	4.9	6.3	6.3	6.3	7.2	7.2	7.2
Filtration Rate GPM/Ft²	5-20	5-20	5-20	5-20	5-20	5-20	5-20
Filtration Flow Rate at 15 GPM/Ft² (GPM)	73.5	94.5	94.5	94.5	108	108	108
Filtration Flow Rate at 20 GPM/Ft² (GPM)	98	126	126	126	143	143	143
Backwash Flow Rate (GPM)	25 - 98	32 - 126	32 - 126	32 - 126	36 - 143	36 - 143	36 - 143
Maximum Working Pressure (PSI)	50	50	50	50	50	50	50

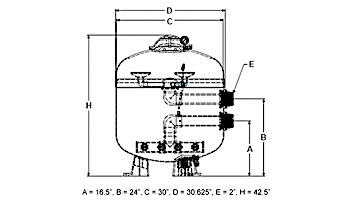

Vertical Clearance	42.5"	47.5"	47.5"	47.5"	48.5"	48.5"	48.5"
Side Clearance	30"	34"	34"	34"	36.25"	36.25"	36.25"
Media Required (sand)	650 lbs	950 lbs	950 lbs	950 lbs	1050 lbs	1050 lbs	1050 lbs
Inlet / Outlet Size	2"	2"	3"	3"	2"	3"	3"
Carton Weight (lbs)	185 lbs	196 lbs	196 lbs	200 lbs	201 lbs	201 lbs	201 lbs
