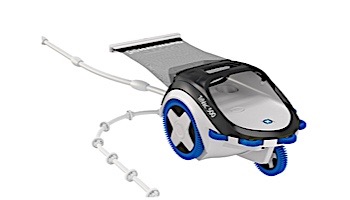

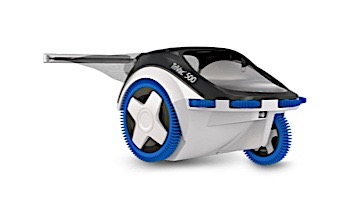

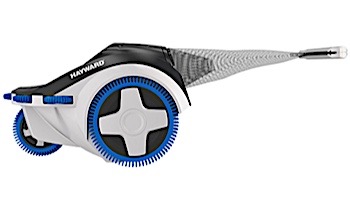

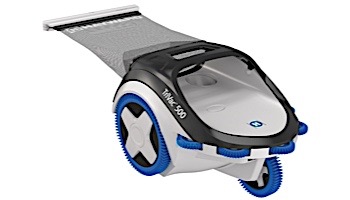

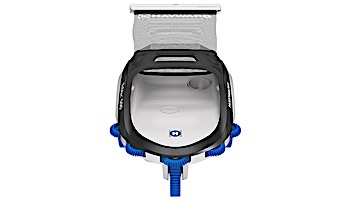

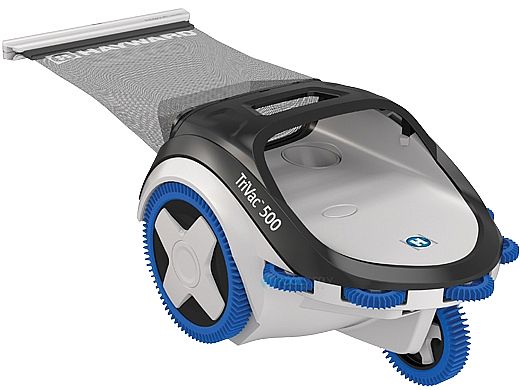

Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C

Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C Hayward TriVac 500 Pressure-Side Automatic Pool Cleaner | W3TVP500C
$449.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Patented AquaDrive Water-Jet Propulsion Technology
  • 3 High-Pressure Venturi-Jets, Wide Vacuum Inlet
  • Cleans the pool floor, walls and coves
  • Low-Friction Wheels, Powerful Sweep Hose
  • Perfect for In-ground Residential Pools, Gunite, Vinyl, Fiberglass, Pebble and Tile
  • Online part number W3TVP500C is the direct replacement for part number TVP500C.
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
OVERVIEW
The Simple Way to Get a Powerful Clean

For a thorough yet gentle clean of any pool, choose the TriVac 500 pressure cleaner from Hayward. Designed with patented AquaDrive technology, TriVac is powered by water-jet propulsion, carefully and efficiently navigating the pool floor, walls and coves while its unique short back-up sequence keeps it on task to clean faster. Its triple venturi-jet action and wide vacuum inlet scoop up more dirt and debris, and its advanced sweep hose helps cover corners and crevices. Plus, with an extra-large debris bag and unique float, TriVac 500 allows you to spend less time on maintenance and more time on relaxation.

Patented AquaDrive Technology
  • Water-jet propulsion moves the cleaner easily and efficiently around the pool for complete pool coverage
  • Low-friction wheels eliminate wear-and-tear on pool surfaces
  • 3 high-pressure venturi jets and a wide vacuum inlet for superior debris pickup
  • Unique back-up sequence allows the cleaner to spend more time cleaning and less time turning
Powerful sweep hose
  • Water-jet propulsion moves the cleaner easily and efficiently around the pool for complete pool coverage
Patented extra-large debris bag
  • Carries more debris along with effortless management of dirt and debris

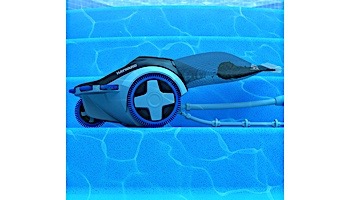

Goes deep to care for surfaces
TriVac 500’s patented AquaDrive water-jet propulsion technology provides complete coverage of the pool interior while minimizing the impact on its finish. Its unique back-up sequence helps it stay on track to clean any pool faster.

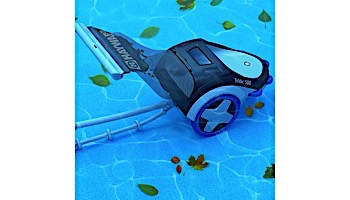

Leaves no leaf behind
With triple venturi-jet action and a wide vacuum inlet, TriVac 500 boasts powerful suction that easily captures debris from the pool floor, walls and coves. Its stronger sweep hose helps round up debris on ledges, corners and crevices, ensuring you get a total clean.

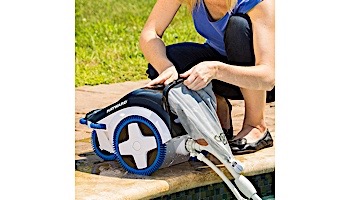

Makes maintenance simple
With its patented extra-large debris bag, TriVac 500 can work for longer without being emptied. And when it does come time to clean out the bag, simply remove the unique float at the top and rinse through the opening with a garden hose.

Technical Specifications
Feature TriVac 500
Pool Coverage Floor, Walls and Covers
Max Pool Size* 20' x 40'
Debris Bag Capacity 6 Quarts
Cleaning Path Width 9"
Suction Intake Diameter 2-1/2"
Venturi Jets 3
Hose Length 30'
Drive and Back-up System AquaDrive® Technology
Average Back-up Frequency 60-75 seconds
Average Back-up Time 5-10 seconds
Cleaning to Back-up Ratio 90%-10%
Optimal Working Pressure 23 PSI
* Optional hose kits available for larger pools or special configurations.


Brand: HAYWARD
SPECIFICATIONS
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 10 answers
I have a Hayward Pool pump with a dedicated cleaning port, do I need the booster pump?
A shopper on May 27, 2016
Does this skim the top like the phantom?
Sylvia on Jul 1, 2020
BEST ANSWER: My unit does not specifically skim the surface. IOt spends most of its time under water. It does however, come to the surface once i a while. the sweep will keet the surface clean by circulating the wtger from the sweep so any debris is then drawn intothe pool's ilter basket.End eslt is that pool is kept very clean and I am happy with my purchase.
? what is the highest pressure recommended, my pool has a separate pump for fountain and cleaner
Johnny on May 7, 2021
BEST ANSWER: I don’t know the exact number. I just used the valve and adjusted it. So it not much. We love it but you have to keep terming it down so it doesn’t spew your pool water onto your deck. It takes a bit to dial it in. GL
Do I need a booster pump?
A shopper on Mar 29, 2021
BEST ANSWER: We love it. No we did not need a booster. We have a valve on that line and I would say it’s about half open.
My trivac stopped working, how do I start it up again?
A shopper on Jul 5, 2021
Does it filter sand & silt?
A shopper on May 14, 2021
REVIEWS
3.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
1
0
0
Rated 3 out of 5
Product Not as Good performer as the old version
The old version works better, picks up more efficiently.
Wheels on the new version (Trivac 500) clogs easily with leaves and stalls the wheel on one side or the other.
December 16, 2019
Purchased
1 year ago
RESOURCES
WARRANTY
Hayward Pool Products warranties all items sold over the internet for a period of one year, parts only, no labor, ONLY when purchased from a Hayward Authorized Online Reseller.
  • Salt cell replacements W3T-CELL15, W3T-CELL-9, and W3T-CELL-3 include a three year, parts only warranty, when purchased from a Hayward Authorized Online Reseller.
Pool Supply Unlimited is a Hayward Authorized Online Reseller.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/15/2020. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
