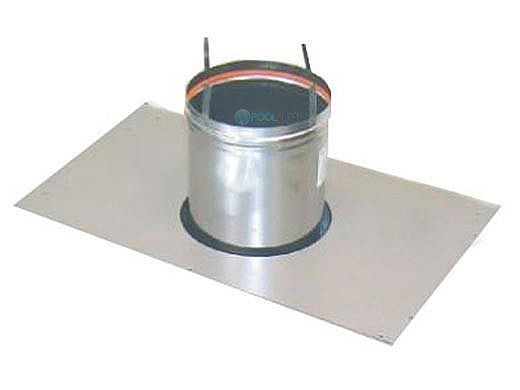

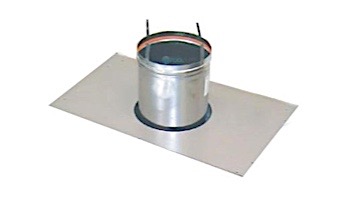

Hayward Negative Pressure Vertical Indoor Vent Adapter Kit for H250 Universal Heaters | 6" Diameter | UHXNEGVT12506
$155.16
| Platinum Preferred Manufacturer |
- These kits are for indoor heater venting applications
- Also for outdoor heater venting applications where heater is under a roof cover
- See Installation Instructions for more information
OVERVIEW

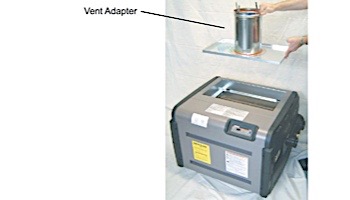

Indoor installation and venting. Positive and Negative Pressure Venting Systems.

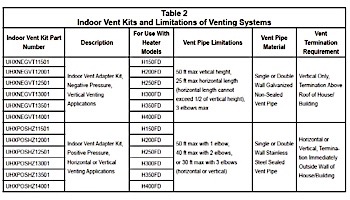

The heater is designed such that it may be vented using either a negative-pressure or a positive-pressure venting system. The appropriate system of venting for a particular site will depend on many factors such as vent termination needs (horizontal/vertical), and the cost of venting system. Table 2 lists the indoor venting kits available and the limitations of each system.
Heaters come stock with outdoor top. These tops are 6" in diameter (Negative or Positive) for all indoor venting applications.
Negative or Positive?
Negative is for a vertical or straight up or almost straight up vent pipe where the heat rise creates lift and minimal condensation will form in the pipe.
Positive is for a more horizontal application venting application where the heat rise is less and there is a chance of more condensation in the pipe that will cause rusting and damage.
The heater is designed such that it may be vented using either a negative-pressure or a positive-pressure venting system. The appropriate system of venting for a particular site will depend on many factors such as vent termination needs (horizontal/vertical), and the cost of venting system. Table 2 lists the indoor venting kits available and the limitations of each system.
Heaters come stock with outdoor top. These tops are 6" in diameter (Negative or Positive) for all indoor venting applications.
Negative or Positive?
Negative is for a vertical or straight up or almost straight up vent pipe where the heat rise creates lift and minimal condensation will form in the pipe.
Positive is for a more horizontal application venting application where the heat rise is less and there is a chance of more condensation in the pipe that will cause rusting and damage.
Brand: HAYWARD
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions
Browse 4 questions
and 3 answers
What is actual delivery time for Indoor Neg. Pressure Vertical 6" Vent Adapter Kit - H250FD - UHXNEGVT12501?
WHAT SIZE VENT PIPE IS REQUIRED ?
BEST ANSWER: 6". I use this per specs. Single wall. Works great.
- Reply
- Inaccurate
- James B on Jul 11, 2016
- Purchased on Sep 24, 2014
Is this ok by itself or do require a pressure switch with it?
BEST ANSWER: Vent pressure switches are included in the kit.
- Reply
- Inaccurate
- Philip K on Jun 1, 2021
- Purchased on Jun 18, 2019
I have Hayward 200K SwimPro heater. Is this the right vent?
