Home Hayward Indoor Vent Adapter Kit for H500FD Universal Heaters | Vertical | 6" Diameter | UHXNEGVT15001

Hayward Indoor Vent Adapter Kit for H500FD Universal Heaters | Vertical | 6" Diameter | UHXNEGVT15001

Call us to order.
Hayward Indoor Vent Adapter Kit for H500FD Universal Heaters | Vertical | 6" Diameter | UHXNEGVT15001
Hayward Indoor Vent Adapter Kit for H500FD Universal Heaters | Vertical | 6" Diameter | UHXNEGVT15001
Hayward Indoor Vent Adapter Kit for H500FD Universal Heaters | Vertical | 6" Diameter | UHXNEGVT15001
Hayward Pool Heater Vent Kit recalled due to Carbon Monoxide Poisoning Hazard

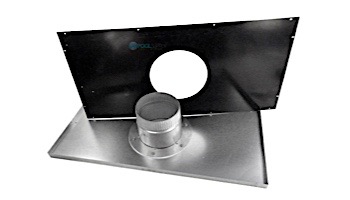

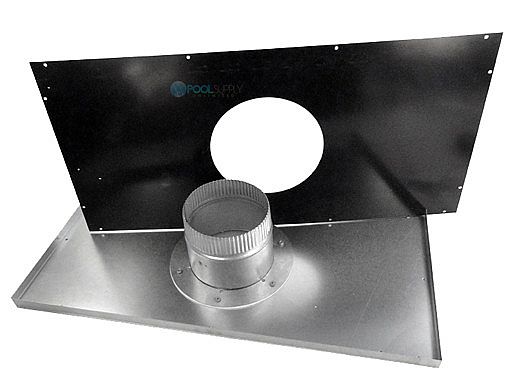

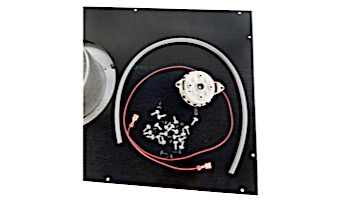

This recall involves the Hayward UHXNEGVT15001 negative pressure 6-inch vent kit for gas pool heaters. The vent kit is used exclusively on Hayward H500FD gas heaters. The kit includes the following: one vent pipe adapter for negative pressure galvanized vent pipe, one flue cover plate with hole for vent, #10 sheet metal screws, vent pressure switches, vent pressure switch tubing, and vent pressure jumper wire. Only Hayward H500FD gas heaters that are installed indoors and use 6-inch negative pressure galvanized vent piping are affected by this recall.

Click here for direct replacement
Negative Pressure – Vertical Venting

This Kit enables indoor installations where the exhaust vent pipe termination is required to be vertically terminated a minimum of 3 feet above the roof and a minimum of 2 feet above any portion of a building within 10 feet horizontally. These vents are 6" in diameter for all indoor venting applications.

This Kit DOES NOT allow horizontal vent termination

CLEARANCES
The heater must be installed such that the installation and service clearances from combustible materials shown in Table 4 are maintained. This heater may be installed on combustible floors. Do not install heater in a closet.

Table 4
Indoor Installation Clearance
Heater Panel Required Clearance
Top 36 inches
Front 24 inches
Back 6 inches
Water Connection Side 12 inches
Side Opposite Water Connection 6 inches

AIR SUPPLY

Indoor installations and outdoor shelters (confined spaces) must be provided with adequate combustion and ventilation air vents to assure proper heater operation. These vents must be sized according to the requirements stated in paragraph A or B below (whichever applies to the installation).

These vents must never be obstructed when heater is in operation.

When air blowers are used in spa/hot tub installations and are located in proximity to the heater, caution must be observed to ensure sufficient combustion air is available to the heater for proper combustion. A separate blower air duct is recommended.


Brand: HAYWARD
