Negative Pressure – Vertical Venting

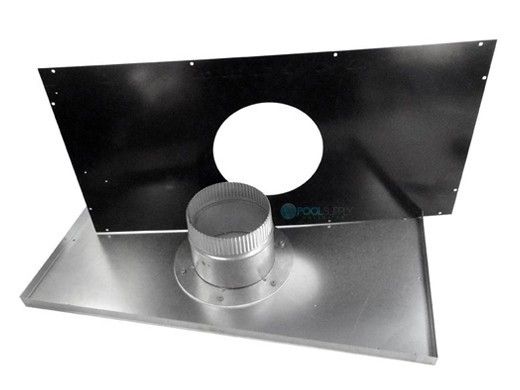

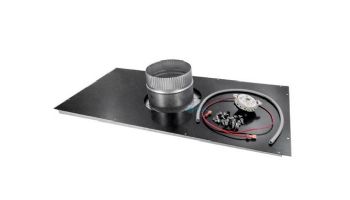

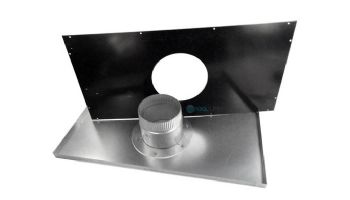

This Kit enables indoor installations where the exhaust vent pipe termination is required to be vertically terminated a minimum of 3 feet above the roof and a minimum of 2 feet above any portion of a building within 10 feet horizontally. These vents are 6" in diameter for all indoor venting applications.
This Kit DOES NOT allow horizontal vent termination
CLEARANCES
The heater must be installed such that the installation and service clearances from combustible materials shown in Table 4 are maintained. This heater may be installed on combustible floors. Do not install heater in a closet.
Table 4 |
Indoor Installation Clearance |
Heater Panel |
Required Clearance |
Top |
36 inches |
Front |
24 inches |
Back |
6 inches |
Water Connection Side |
12 inches |
Side Opposite Water Connection |
6 inches |
AIR SUPPLY
Indoor installations and outdoor shelters (confined spaces) must be provided with adequate combustion and ventilation air vents to assure proper heater operation. These vents must be sized according to the requirements stated in paragraph A or B below (whichever applies to the installation).
These vents must never be obstructed when heater is in operation.
When air blowers are used in spa/hot tub installations and are located in proximity to the heater, caution must be observed to ensure sufficient combustion air is available to the heater for proper combustion. A separate blower air duct is recommended.
