Home Hayward AquaTrol Above Ground Salt Chlorine Generator | Hose/Pipe Twist Lock | 18K Gallons | W3AQ-TROL-HP-TL
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Hayward AquaTrol Above Ground Salt Chlorine Generator | Hose/Pipe Twist Lock | 18K Gallons | W3AQ-TROL-HP-TL

Hayward AquaTrol Above Ground Salt Chlorine Generator | Hose/Pipe Twist Lock | 18K Gallons | W3AQ-TROL-HP-TL
$1,149.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Online part number W3AQ-TROL-HP-TL is the direct replacement for part number AQ-TROL-HP-TL.
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
WARRANTY
FOR YOU
PARTS
OVERVIEW

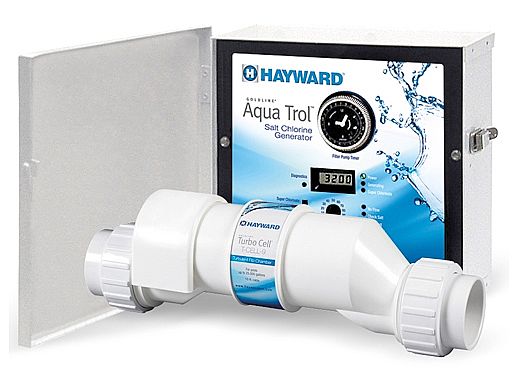

The Aqua Trol Electronic Chlorine Generator (also known as a salt chlorinator) is designed specifically for above ground pools up to 18,000 gallons. The Aqua Trol has all the same functions and features of the Aqua Rite but with a lower chlorine output.

The Aqua Trol also has an integral time clock for control of the pool filtration pump. Since many above ground pools already have a single electrical outlet for the filter pump, the Aqua Trol is designed with an outlet (timer controlled) for the filter pump to plug into, the Aqua Trol then plugs into the original outlet the filter pump was using. The savings on chlorine and electrical power alone (if the pump was previously running 24 hours), will have the Aqua Trol paying for itself in just a few short years. The Aqua Trol system typically installs in less than 30 minutes and is very easy to operate.

No more mixing, measuring and messing around with liquid or tablet chlorine again. Now you can automatically turn ordinary salt into a self-regenerating supply of pure chlorine for both pool and spa water that's clean, clear and luxuriously soft. Electronic chlorination has become the simple, safe and affordable alternative to using harsh, chemically-produced chlorine to sanitize pools and spas.

Unlike traditional chlorine treatments that require a regular routine of monitoring and replacing chlorine, electronic chlorination produces chlorine from common table salt. The key is our patented Turbo Cell®, a specially designed converter connected to the control unit. As water passes through the Turbo Cell, an extremely safe electrical charge turns the salt previously added to the water into fresh sanitizing chlorine which is then dispensed evenly throughout the pool. Just a teaspoon of salt per gallon is all it takes. Installation is quick, easy and suitable for any new or existing pool.

No chlorine odor, low operating costs, pays for itself, and is virtually maintenance free"electronic chlorination is the ideal alternative to traditional factory produced chlorine for soft, silky-smooth water.

Applications:
For all residential above ground pools up to 18,000 gallons
Suitable for new above-ground pools or retrofit

Features:
Quick and Easy 30 minute installation
The best water quality attainable
Digital salt display and 7 diagnostic indicators
Selectable super chlorinate function
24 Hour timer for filter pump control
Allows multiple pump periods per day
Program in 15 minute increments
Manual switch (ON-Auto-OFF)
Microprocessor automates all functions
Automatically cleans the cell by periodically reversing polarity
Patented Turbo Cell for maximum efficiency and flow rate
UL and CUL Listed
"RJ" models mount the cell directly to the return jet(on the outside of the pool)
"HP" models include fittings for hose connections or 2" PVC pipe (use standard adapters, not supplied of 1 1/2" pipe)
2 Line Cord & Outlet Options
NEMA "straight blade" is standard
"TL" models have twist lock line cord and outlet


Brand: HAYWARD
SPECIFICATIONS
Pool Size
18,000 Gallons
Pool Type
In-Ground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
can i just buy the control panel ?
A shopper on Apr 28, 2016
BEST ANSWER: I'm not sure I would buy just the control panel. You would need to install a flow switch in the plumbing that appears to be sold separately.
Can I use it for inground pool?
Edwin on Mar 29, 2017
BEST ANSWER: As long as it is below 18K gallons it will work.
REVIEWS
There are no reviews for this item. Write Review
WARRANTY
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.

See Warranty Information PDF for warranty details.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
