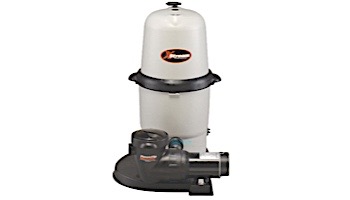

Hayward X-Stream Above Ground Cartridge Filter System | 150 Sq Ft | 1.5HP Pump with Hoses | W3CC15093S
$879.00
 |
|
|
XStream size for an XStream Clean. Once you see the new XStream filtration from Hayward, you'll be hooked. Its massive size and incredible performance mean years of trouble-free filtration. It has an extra large capacity for dirt and debris and a quick-release, high-capacity air relief valve. But size isn't the only thing this filter's big on. The Xstream Filtration makes daily operation and servicing more convenient than ever before... Convenience where it counts.
- Sleek, flush mounted pressure gauge
- Quick release, high capacity air relief valve
- Unique safety-catch prevents over-tightening of the lid and efficiently secures the filter for high performance operation
- Longer, more efficient filtering life
- Union connection for simple installation and winterization
| Brand | Hayward |
| Item | Cartridge Filter System |
| Type | Full-Flo |
| Series | XStream Filtration |
| Filtration Area | 150 sq.ft. |
| Flow Rate | 120 GPM |
| Maximum Working Pressure | 35 psi |
| Filter | CC1500 |
| HP | 1.5 |
| Pump | PowerFlo Matrix |
| Turnover | 57,600 gal @ 8 hrs - 86,400 gal @ 12 hrs |
| Filter Tank | Injection-Molded Glass Reinforced |
| Filter Element | Reinforced Polyester Element |
| Fastening | EasyLok Ring Assembly |
| Mounting Base | Injection-Molded Glass Reinforced |
| System Components | 1-1/2 Inch Hose Packages Include Two 1-1/2 Inch x 6 ft Hose Hose Adapters and Hose Clamps Union Connection |
Brand: HAYWARD
4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
1
0
0
0
Rated 5 out of 5
Great system
Went from a horrible DE filter system to this one and it has been a world of a difference!
- Was this review helpful? Yes (4) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (4) No (1)
- Flag as Inappropriate
Rated 4 out of 5
Yes, very powerful. Keeps the water circling with all the pressure
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
Reviews for Similar Products
Do not include HTML, links, references to other stores, pricing or contact info.
My question is about:
If your question is about more than one item, click + to add them.
Browse 5 questions
Browse 5 questions
and 9 answers
how does one get the lid off this filter?
A shopper
on Sep 6, 2020
BEST ANSWER: Under the twist ring of the middle are yellow levers to push UP with your fingers at the same time using your hands to twist COUNTER clockwise (to left when looking down). It is AWKWARD as the whole filter assembly does not secure to the (motor) base. I had to use my feet at the same time to hold the base of the filter as you press the tabs and turn the ring. Will help if you have a 2nd helper to hold either the base part OR the top part when trying this. In addition I used a RUBBER mallet to tap the LARGE ring at the handles when clearing the locking tabs to aid in movement to get the turning started.
Unlike the original filter assembly I had replace (it was 15 years old) the LARGE ring DOES NOT come off, this one stays connected to the TOP of the filter assembly.
Unlike the original filter assembly I had replace (it was 15 years old) the LARGE ring DOES NOT come off, this one stays connected to the TOP of the filter assembly.
- Reply
- Inaccurate
- Philip F on Sep 6, 2020
- Purchased on Jun 7, 2020
BEST ANSWER: Under the twist ring of the middle are yellow levers to push UP with your fingers at the same time using your hands to twist COUNTER clockwise (to left when looking down). It is AWKWARD as the whole filter assembly does not secure to the (motor) base. I had to use my feet at the same time to hold the base of the filter as you press the tabs and turn the ring. Will help if you have a 2nd helper to hold either the base part OR the top part when trying this. In addition I used a RUBBER mallet to tap the LARGE ring at the handles when clearing the locking tabs to aid in movement to get the turning started.
Unlike the original filter assembly I had replace (it was 15 years old) the LARGE ring DOES NOT come off, this one stays connected to the TOP of the filter assembly.
Unlike the original filter assembly I had replace (it was 15 years old) the LARGE ring DOES NOT come off, this one stays connected to the TOP of the filter assembly.
- Reply
- Inaccurate
- Philip F on Sep 6, 2020
- Purchased on Jun 7, 2020
Not sure which lid. First block water from coming from skimmer, then turn valve on side of big canister (water going to pool) I turn the air valve on top of cannister to open to make taking lid off easier. If it is the see thru lid grasp on both sides and follow directions on lid to open. If cannister you grasp the handles and press the tabs inside handles so you can twist past the tabs on the cannister. Make sure when done you open valve on side of cannister and let water flow from skimmer. Leave air valve on cannister open til water comes out before turning the pump back on. I hope this helps. If you got a booklet with the pump I think they explain it. Good Luck, hope I helped.
- Reply
- Inaccurate
- April B on Sep 6, 2020
- Purchased on May 24, 2020
Vote for the best answer above!
Having trouble with my lock down ring. Is this common?
A shopper
on May 5, 2021
BEST ANSWER: Seems to be
You think it’s locked in security turn the pump on and water streams right from the lock ring sucks
You think it’s locked in security turn the pump on and water streams right from the lock ring sucks
- Reply
- Inaccurate
- Freddy on Feb 18, 2022
BEST ANSWER: Seems to be
You think it’s locked in security turn the pump on and water streams right from the lock ring sucks
You think it’s locked in security turn the pump on and water streams right from the lock ring sucks
- Reply
- Inaccurate
- Freddy on Feb 18, 2022
Vote for the best answer above!
Hello, I have a 10x16 oval above ground will this pool pump work?
A shopper
on May 2, 2021
BEST ANSWER: It will absolutely work. My 12x24 above ground oval is Crystal Clear ! It came with a sand filter, water was never clear . Hayward is the best, I have used they products in the last 3 pools I have had .
- Reply
- Inaccurate
- April B on May 3, 2021
- Purchased on May 24, 2020
BEST ANSWER: It will absolutely work. My 12x24 above ground oval is Crystal Clear ! It came with a sand filter, water was never clear . Hayward is the best, I have used they products in the last 3 pools I have had .
- Reply
- Inaccurate
- April B on May 3, 2021
- Purchased on May 24, 2020
Absolutely. I have a 12x24 oval above ground. It cane with a sand filter. Kept water cloudy. Ordered Hayward x treme. Been crystal clear since. It truly is a Wonderful product.
- Reply
- Inaccurate
- April B on May 3, 2021
- Purchased on May 24, 2020
I have an oval 12' x 32' and it keeps my pool clean
- Reply
- Inaccurate
- Genny M on May 3, 2021
- Purchased on Jun 11, 2020
Vote for the best answer above!
Does this need sand?
A shopper
on Apr 24, 2022
BEST ANSWER: No sand. The cartridge replaces the sand. I prefer cartridge over sand.
- Reply
- Inaccurate
- April B on Apr 25, 2022
- Purchased on May 24, 2020
BEST ANSWER: No sand. The cartridge replaces the sand. I prefer cartridge over sand.
- Reply
- Inaccurate
- April B on Apr 25, 2022
- Purchased on May 24, 2020
Vote for the best answer above!
Is the Hayward extreme filter available?
Sheri B
on May 26, 2021
BEST ANSWER: The best way to check our current stock is to call in to one of our representatives at (888) 836-6025 Our customer service team is available Monday - Thursday 6am-6pm (Central Time). Thank you.
- Reply
- Inaccurate
- Sydney R Staff on Feb 2, 2023
BEST ANSWER: The best way to check our current stock is to call in to one of our representatives at (888) 836-6025 Our customer service team is available Monday - Thursday 6am-6pm (Central Time). Thank you.
- Reply
- Inaccurate
- Sydney R Staff on Feb 2, 2023
Vote for the best answer above!
Questions For Similar Products
Parts Content
Hayward X-Stream Above Ground Cartridge Filter System | 150 Sq Ft | 1.5HP Pump with Hoses | W3CC15093S
$879.00
Product description
XStream size for an XStream Clean. Once you see the new XStream filtration from Hayward, you'll be hooked. Its massive size and incredible performance mean years of trouble-free filtration. It has an extra large capacity for dirt and debris and a quick-release, high-capacity air relief valve. But size isn't the only thing this filter's big on. The Xstream Filtration makes daily operation and servicing more convenient than ever before... Convenience where it counts.
- Sleek, flush mounted pressure gauge
- Quick release, high capacity air relief valve
- Unique safety-catch prevents over-tightening of the lid and efficiently secures the filter for high performance operation
- Longer, more efficient filtering life
- Union connection for simple installation and winterization
| Brand | Hayward |
| Item | Cartridge Filter System |
| Type | Full-Flo |
| Series | XStream Filtration |
| Filtration Area | 150 sq.ft. |
| Flow Rate | 120 GPM |
| Maximum Working Pressure | 35 psi |
| Filter | CC1500 |
| HP | 1.5 |
| Pump | PowerFlo Matrix |
| Turnover | 57,600 gal @ 8 hrs - 86,400 gal @ 12 hrs |
| Filter Tank | Injection-Molded Glass Reinforced |
| Filter Element | Reinforced Polyester Element |
| Fastening | EasyLok Ring Assembly |
| Mounting Base | Injection-Molded Glass Reinforced |
| System Components | 1-1/2 Inch Hose Packages Include Two 1-1/2 Inch x 6 ft Hose Hose Adapters and Hose Clamps Union Connection |
Features and details
- Extra-large filter body ensures an equal distribution of dirt and debris throughout the filtering element
- Engineered for use with flexible or rigid plumbing
- Easy-Lok ring design gives you single-turn access to all internal components
- Glass-reinforced, noncorrosive PermaGlass XL filter tank for long life.
- Online part number W3CC15093S is the direct replacement for part number CC15093S.
- Single Speed Pumps Cannot Be Used in CA or AZ, Click Here for Two-Speed Options
Specifications
Filter Square Foot
150
Pump Horse Power
1.5
Resources
Warranty
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.
See Warranty Information PDF for warranty details.
For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com
This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com.
|
