Home Pool Pool & Spa Filters Hayward Pool & Spa Filters Hayward Pro Series Side Mount Sand Filter 30 inch Tank | Backwash Valve Required | W3S310S
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

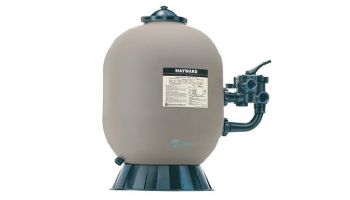

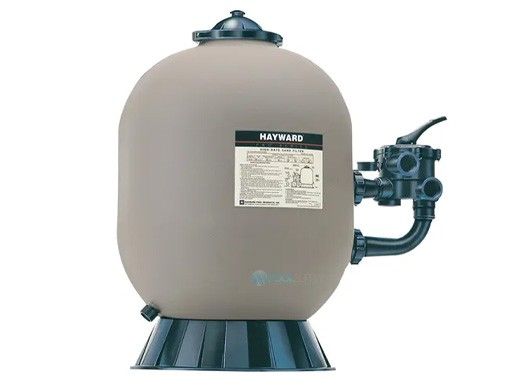

Hayward Pro Series Side Mount Sand Filter 30 inch Tank | Backwash Valve Required | W3S310S

Hayward Pro Series Side Mount Sand Filter 30 inch Tank | Backwash Valve Required | W3S310S Hayward Pro Series Side Mount Sand Filter 30 inch Tank | Backwash Valve Required | W3S310S
$999.00

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Requires Purchase of Backwash Valve Sold Separately
  • Unitized, corrosion-proof filter tank molded of rugged, colorfast reinforced thermoplastic for dependable, all-weather performance
  • Precision-engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability
  • Online part number W3S310S is the direct replacement for part number S310S.
RELATED ITEMS
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
RELATED ITEMS

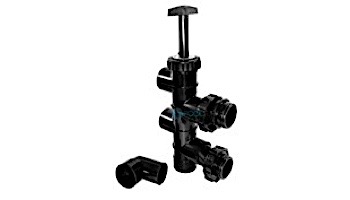

  • Hayward 2" Slip Push Pull Slide Valve Kit for Sand Filters | SP0410X602S
    Hayward 2" Slip Push Pull Slide Valve Kit for Sand Filters | SP0410X602S

    $100.42
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    $313.29

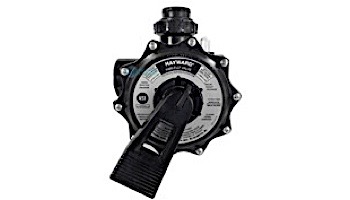

  • Hayward Pro Series Vari-Flo Control Backwash Valve | SP0715X62
    Hayward Pro Series Vari-Flo Control Backwash Valve | SP0715X62

    $204.36
OVERVIEW
Providing you with quality you can trust, the Pro Series high-rate sand filters incorporate the latest pool filter technology to ensure your pool is operating at its very best. Molded of durable, corrosion-proof reinforced thermoplastic, they feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. Pro Series sets a new standard for performance, value and dependability.


* Flange clamp design allows 360 degree rotation of valve to simplify plumbing
* Integral top diffuser ensures even distribution of water over the top of the sand media bed.
* Full-size internal piping provides smooth, free-flowing performance
* Integral sight glass lets you see when backwash cycle is completed
* Large pressure sand/water drain for rapid winterizing or servicing

Product Specifications
Brand Hayward
Item Sand Filter
Series Pro
Filtration Area 4.91 sq-ft
Filtration Rate 98 gpm/sq-ft
Size 30 inch
Max Working Pressure 50 psi
Mounting Type Side Mount
Turnover 47040 gal at 8 hrs, 58800 gal at 10 hrs
Media # 1/2 Silica Sand (0.45 - 0.55 mm)
Media Required 500 lbs
Filter Tank Molded Polymeric
Mounting Base Injection Molded Thermoplastic
Vertical Clearance 18 inch
Side Clearance 18 inch
Underdrain 360 deg Self-cleaning slotted laterals, precision installed in ball-joint assembly


Brand: HAYWARD
SPECIFICATIONS
Tank Diameter
30"
Valve Position
Side
ClearPro Technology
No
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 2 answers
What is the recommended pump or HP for this filter?
Brenda K on Jul 8, 2016
instruction manuel for model s310s?
A shopper on Jun 28, 2016
how to remove an air relief cap that was snapped off leaving half in place?
Breakinjim on Jul 31, 2017
Will a 1HP motor be adequate to run with that filter?
A shopper on Aug 20, 2020
BEST ANSWER: The HP rating of the motor isn't as much a factor as the impeller connected to it. You need to check the flow rate on the motor assembly to match it to the flow rate on the tank. The tank has a filtration rate of 98 gallons per minute/ sq-ft. there are 5 sq-ft so roughly 500 gallons per minute is the maximum capacity. On the minimum side, a normal 1 hp motor is going to be low but you can make up for that with longer run times to filter the pool each day. also, with a smaller motor, you also lose pressure so if anything in your system monitors pressure then it may have problems as well.
How many pounds of sand does it hold?
Noles on Jun 18, 2018
BEST ANSWER: 500 lbs.
What does the backwash valve look like?
A shopper on Jul 30, 2021
