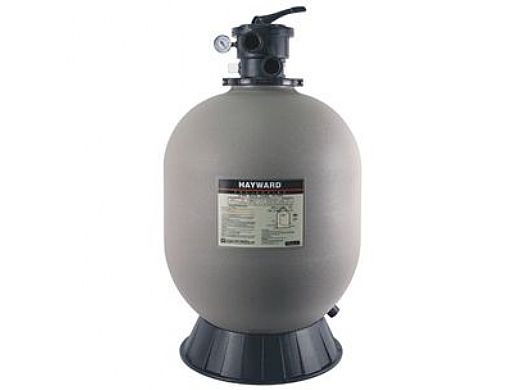

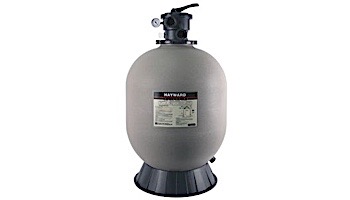

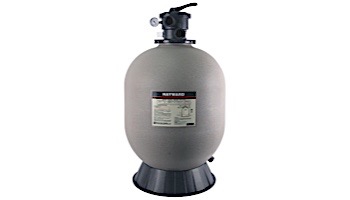

ProSeries top-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long lasting performance.
- Durable corrosion proof materials for dependable all weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Top-mount models are available with 7-position or 6-position VariFlo control valve
- Side-mount models are available with 6-position VariFlo or 2-position slide valve
Product Specifications
Brand |
Hayward |
Item |
Sand Filter |
Series |
Pro |
Filtration Area |
4.91 sq-ft |
Flow Rate |
98 gpm/sq-ft |
Size |
30 inch |
Mounting Type |
Top Mount |
Turnover |
47040 gal at 8 hrs, 58800 gal at 10 hrs |
Media |
# 1/2 Silica Sand |
Media Required |
500 lbs |
Filter Tank |
Molded Polymeric |

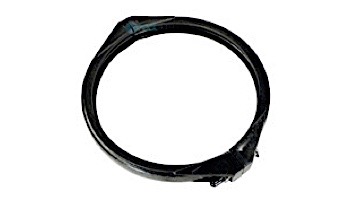

Fastening |
Flange Clamp Design |
Mounting Base |
Injection Molded Polymer |
Underdrain |
360 deg Self-cleaning slotted laterals, precision installed in ball-joint assembly |
