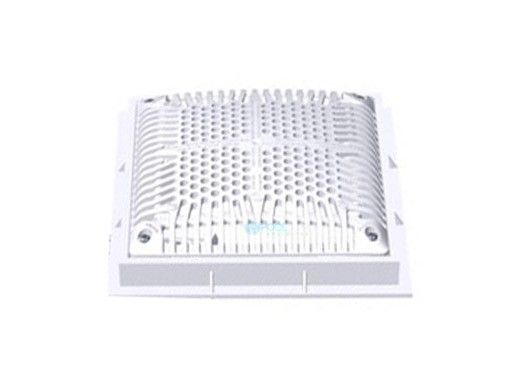

Suction Outlet - Square
Hayward's new Low Velocity suction outlets are specifically designed for applications with requirements limiting the maximum flow velocity to 1.5 feet per second. Each size and flow design cover retrofit to existing Hayward frames and are designed for an extensive 7 year life span. All Hayward WG Series suction outlets and replacement covers are VGB compliant and are tested to ASME A112 19.8b-2009 and ANSI/APSP-16 standards as well as meeting CPSC requirements.
Installation of anything other than the recommended Hayward drain cover on a Hayward frame or Hayward sump may not be ASME A112 19.8b-2009 and ANSI/ APSP-16 compliant. Likewise, the installation of a Hayward drain cover on a non-Hayward frame may not be compliant.
Applications:
- Meets various flow rate requirements
- Installation in concrete, residential and commercial pools
- All Hayward covers can be installed as a single replacement cover with a Stratum SVRS installed on the same suction line
Specifications:
- Approved Flow GPM Floor (Horizontal): 520
- Size: 18" x 18"
- Cover Open Area Sq. inch: 183.20
- 1.5 ft/sec. Flow Rate GPM: 520
- Approved Flow GPM Wall (Vertical): 520
