Home HydroQuip Baptismal Equipment | 5.5kW Heating and Control System with 7 Day Timer | BES6000T

HydroQuip Baptismal Equipment | 5.5kW Heating and Control System with 7 Day Timer | BES6000T

$847.07
HydroQuip Baptismal Equipment | 5.5kW Heating and Control System with 7 Day Timer | BES6000T

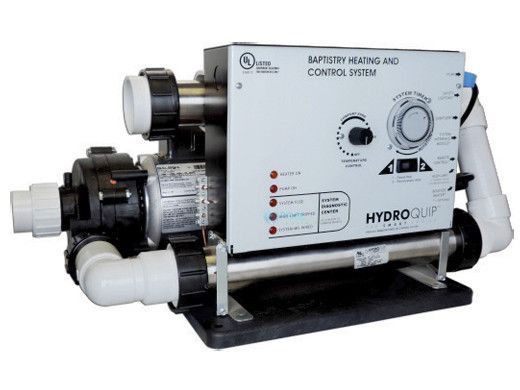

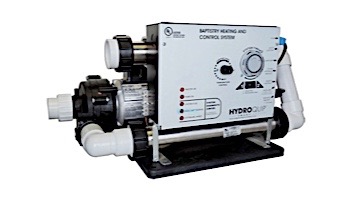

Baptismal Equipment System BES6000 / 6000T Series

 MODEL  BES6000  BES6005  BES6000T BES6005T
 Voltage
 240  240  240
 240
 Pump Voltage
 120V 120V
120V
 120V
 Pump HP
3/4
3/4
 3/4 3/4
 Pump Speed
1
1
1
1
 Heater Wattage
 5.5kW  11kW  5.5kW  11kW
 7-Day Timer
NO
 NO  YES YES
 Sanitizer Optional
 Optional  Optional Optional
 Light  Optional  Optional Optional
Optional

Standard:
  • 5.5 or 11KW Heater in 304SS Housing
  • 3/4HP, 120V Pump, 1 Speed
  • Full Range Thermostat
  • High Limit Protected
  • Pressure Switch Activated
  • Base Mounted
Exclusive:
  • System Diagnostics Indicators
  • Heater “ON” Indicator Light
  • Detailed Installation Manual
  • Detailed Owner’s Manual
  • Detailed Wiring Diagram
Available Options:
  • 7-Day Timer (BES6000/5T models only)
  • Auto-Fill Kit
  • Water Level Kit
  • Drain Kit
  • Step Lighting
  • Cartridge Filter
  • UV Sanitizer
BES6000/5T SERIES WARNING: SYSTEMS WITH TIMERS ARE NOT TO BE USED ON FILL & DRAIN BAPTISMALS

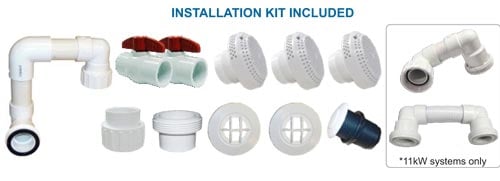

Accessories:
  • Auto-Fill Valve: (PT# 48-0143-K)
  • Auto-Drain Kit: (PT# 48-0141-K)
  • System Interface Module:
  • (PT# 48-0042-K)
  • Water Level Sensors:
  • (Float PT# 48-0141C-K)
  • (Pressure PT# 48-0148-K)

Approval Listings:

  • UL LISTED, INDOOR ONLY, UL1563

Electrical Specifications:

  • SINGLE PHASE
  • *4-WIRE SERVICE
  • 60HZ

Minimum Space Required:

  • 14”H X 26”W X 16”D

Dimensions:

  • 13”H X 27”W X 15”D (5.5KW MODELS) 13”H X 29”W X 15”D (11KW MODELS)

Total Amp Draw:

TOTAL AMP DRAW:
  (CIRCUIT BREAKER SIZE)
 BES6000 & BES6000T
36A
50
BES6005 & BES6005T   56A  70

Shipping Weight:

BES6000   50 LBS. BES6000T  50 LBS.
BES6005  54 LBS.  BES6005T  54 LBS.




Brand: Hydro-Quip
