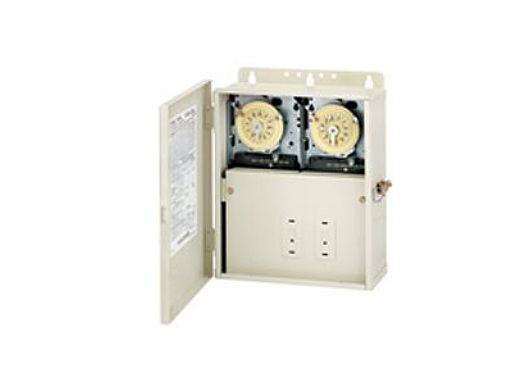

Home Intermatic Dual Box W/1 T104M Heat Delay 208-277V | T12404R

Intermatic Dual Box W/1 T104M Heat Delay 208-277V | T12404R

$253.13
Intermatic Dual Box W/1 T104M Heat Delay 208-277V | T12404R
T10000R Series Pool & Spa Control Centers

The T10000R Series Control Centers feature an all-weather enclosure and contain one or two heavy duty timer mechanisms. In addition, they have provision to install switches or GFCI receptacle on the side and additional switches inside. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.

Specifications
  • Case: 12" (30.5 cm) H x 12" (30.5 cm) W x 4-1/4" (10.8 cm) D, 0.048" steel with electros3;tatically applied light beige finish
  • Knockouts: Five combination 1/2"-3/4" and two combination 3/4"-1" knockouts on the bottom. One combination 1/2"-3/4" on the left side and one combination 3/4"-1" on the back. One knockout 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI
  • Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-208 VAC single phase - 60 HzTime Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
  • Shipping Weight: 10 lbs
  • Agency Approval: CSA/C-US


Brand: INTERMATIC
