This switching device is most suited for controlling electronic valve actuators which direct the flow of water to desired equipment. It can also be used with a spring wound timer or simple switch to control fountains or other aquatic feature.

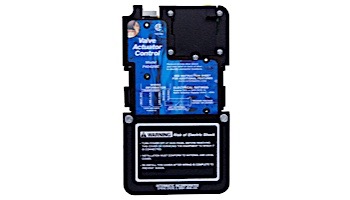

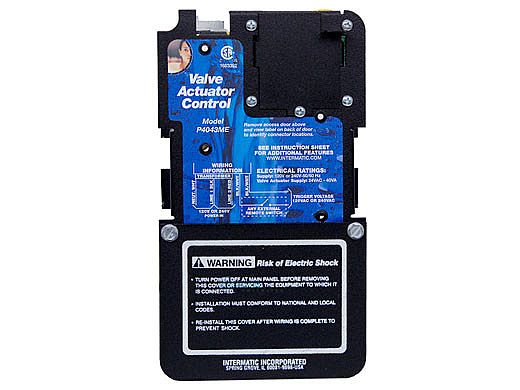

Have you ever wanted an affordable control that would only automate a set of water valves from the pool position to the spa position? Or maybe just turn a single water valve to engage a water feature? Now you can have it all with Intermatic's P4043ME.



Designed specifically for aftermarket and retro-fit applications, the P4043ME is ideal for controlling up to three water valve actuators with any latching or momentary contactor (not provided) capable of providing 120 VAC or 240 VAC. In addition, the P4043ME can switch the thermostat on most heaters between pool and spa when the actuators change position.



The P4043ME is ideal for those applications where only simple water valve control is required and can be triggered by any switching device you may provide (i.e. light switch, spring wound AUTO/OFF, wireless switch, relay, etc...).



Installation is easy! Simply snap the P4043ME into any existing Intermatic enclosure that contains an available mechanism support bracket, hook up power to both the P4043ME and the trigger device, and plug in your 24 VAC water valve actuators behind the top door of the mechanism.



If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
