Home Intermatic 100 AMP Panel W/1 T104M 208-277V Clock | T40004R
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Intermatic 100 AMP Panel W/1 T104M 208-277V Clock | T40004R

$273.52
Intermatic 100 AMP Panel W/1 T104M 208-277V Clock | T40004R

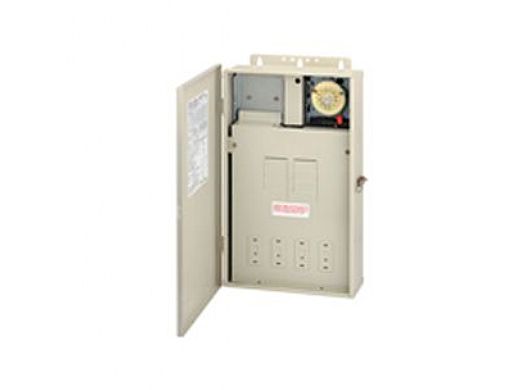

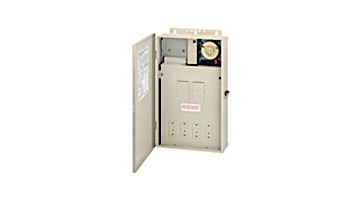

T40000R Series 125 Amp Pool & Spa Control Panels

The T40000R Series Control Panels reduce installation costs and provide all of the electrical requirements for any pool and/or spa installation. They offer an all-in one electrical control center which can be custom wired for a wide variety of requirements, and eliminate the need for additional junction boxes and service panels. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.

Specifications
  • Case: 20-3/4" (52.7 cm) high x 12-3/4" (32.4 cm) wide x 4-1/4" (10.8 cm) deep, 0.048" steel with electrostatically applied light beige finish
  • Knockouts: Seven combination 1/2"-3/4" and three combination 3/4"-1" knockouts on the bottom. Five combination 1/2"-3/4" on the left side. One 1-3/4" x 2-3/4" knockout on the right side for mounting switches and GFCI
  • Panel Rating: 125 Amp max. 120-240 VAC or 120-208 VAC single phase - 60Hz
  • Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
  • Shipping Weight: 20 lbs
  • Agency Approval: CSA/C-US


Brand: INTERMATIC
