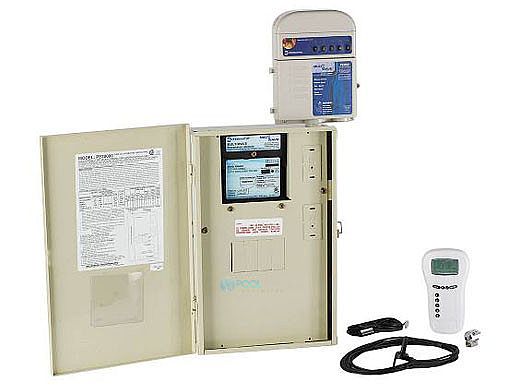

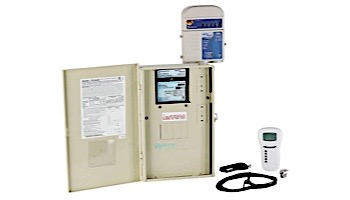

This system includes the MultiWave Basic and an Expansion Module to control up to four valve actuators, two heaters, most name brand variable speed pumps and solar heating/cooling. The Remote Switch feature provides simple ON/OFF control of several components (i.e., spa heater, spa blower, spa lights) simultaneously with the flip of a single switch.



All the components of the MultiWave Basic, plus an expansion module that boosts capacity for control of a combination pool and spa, with a 60 amp load center



Specifications PE25065RC
Load Center Ratings	60 A, 120 VAC, 60 A, 208 VAC Single Phase, 60 A, 240 VAC
Input Voltages Display	60 A, 120/240 VAC or 120/208 VAC single phase
Number of Circuits	5
Heater Protection Switch	No
Number of Actuators Controlled	4
Number of Heaters Controlled	2
Motor	17 FLA, 120/240 VAC, 50/60 Hz 80 LRA, 120/240 VAC, 50/60 Hz
Number of Breaker Knockouts	4
Number of Receptacle/Switch Knockouts	2
Enclosure Rating	Outdoor Type 3R Plastic
Warranty	2-year

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
