Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

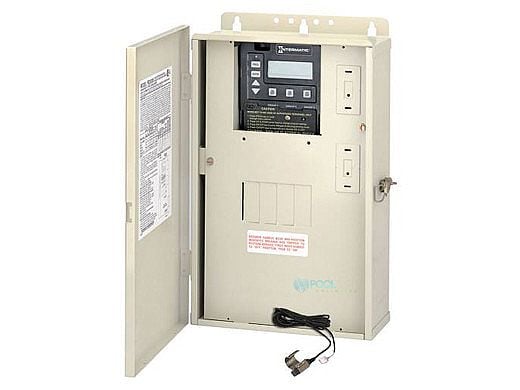

For pool, spa or water feature applications, the Pool or Spa-Wave PE20000 Series Wireless Control System includes one P1353ME mechanism that controls a total of three timed circuits, including single speed or two-speed filter pumps, cleaner/booster pumps, pool lights, spa lights and landscape lights. Countdown and override features allow programs to be interrupted for service and automatically resumed without reprogramming your system.



Specifications PE25300F
Load Center Ratings	60 A, 120 VAC, 60 A, 208 VAC
Input Voltages Display	120-240 VAC, 50/60 Hz
Number of Circuits	3
Heater Protection Switch	No
Switch Type	3-SPST
Resistive	17 A, 120/240 VAC, 50/60 Hz
Tungsten	5 A, 120/240 VAC, 50/60 Hz
Motor	17 FLA, 120/240 VAC, 50/60 Hz
Number of Breaker Knockouts	4
Number of Receptacle/Switch Knockouts	2
Enclosure Rating	Outdoor Type 3R Plastic
Warranty	1-year

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
